Manufacturer: Taoglas

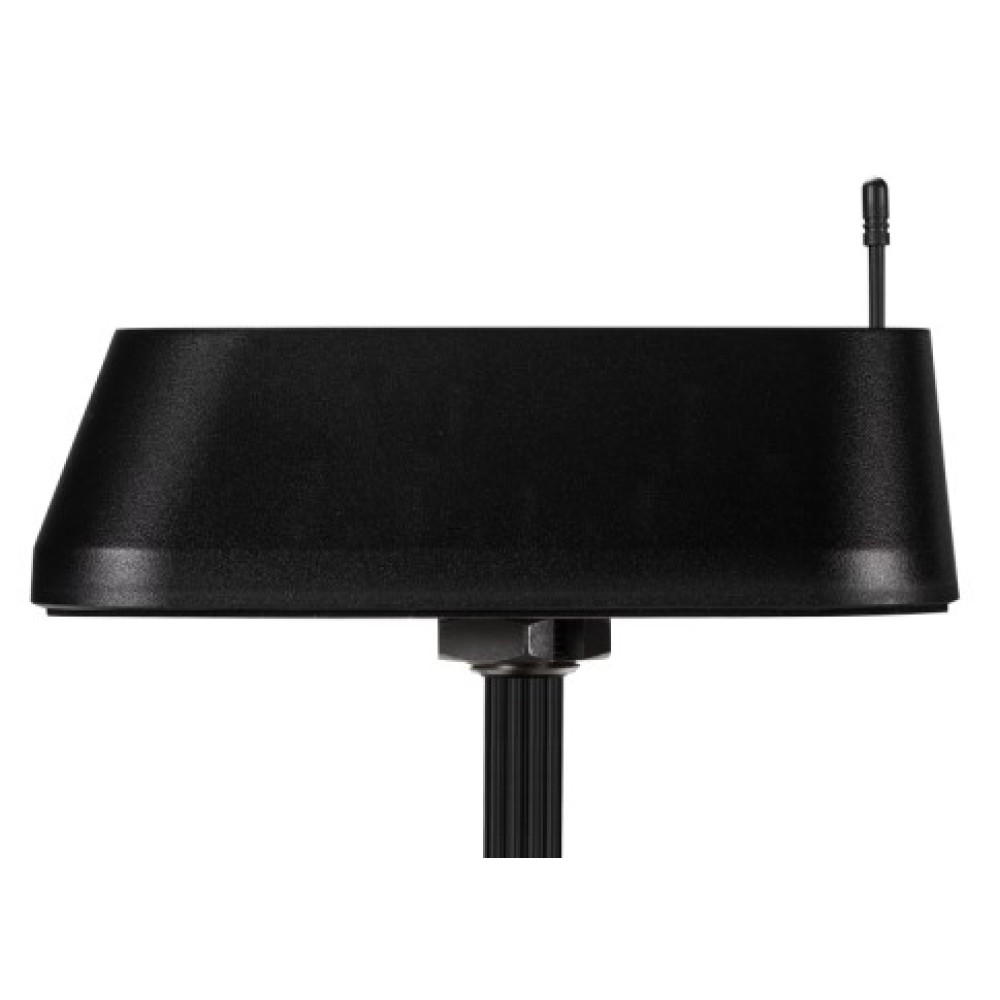

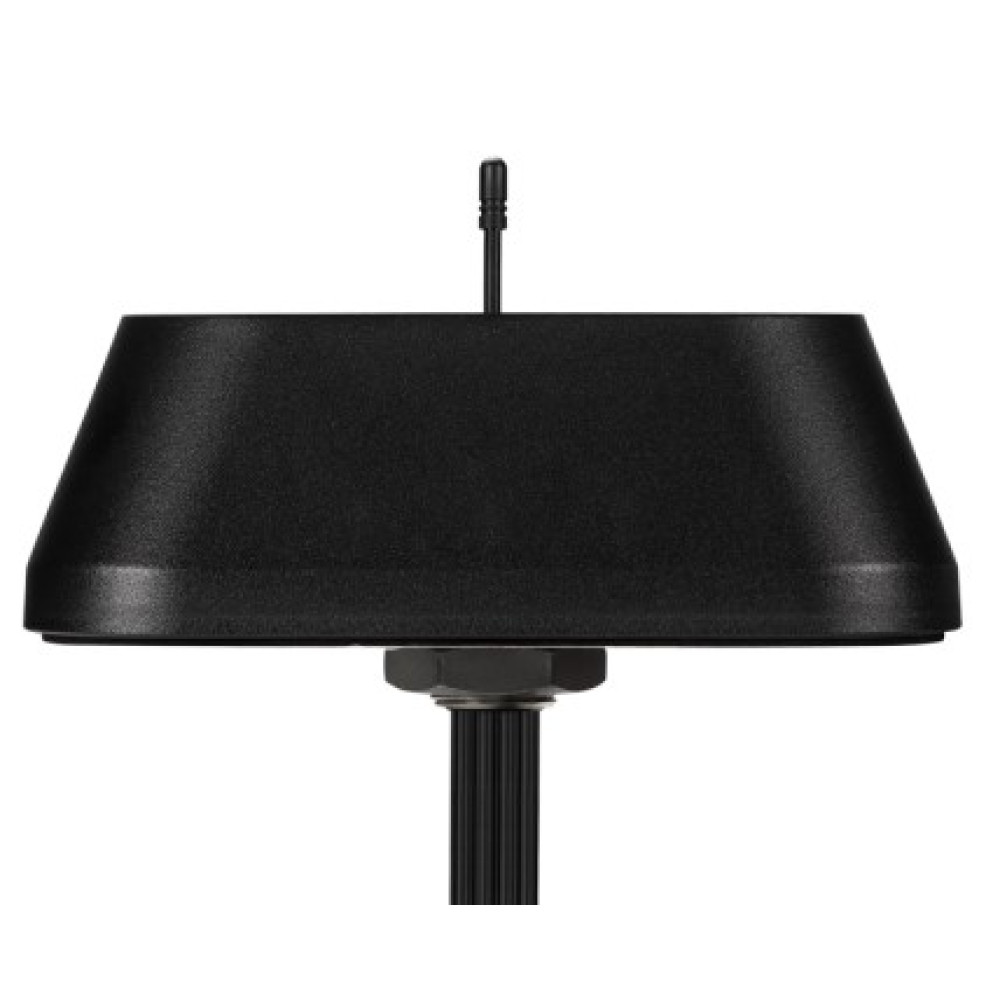

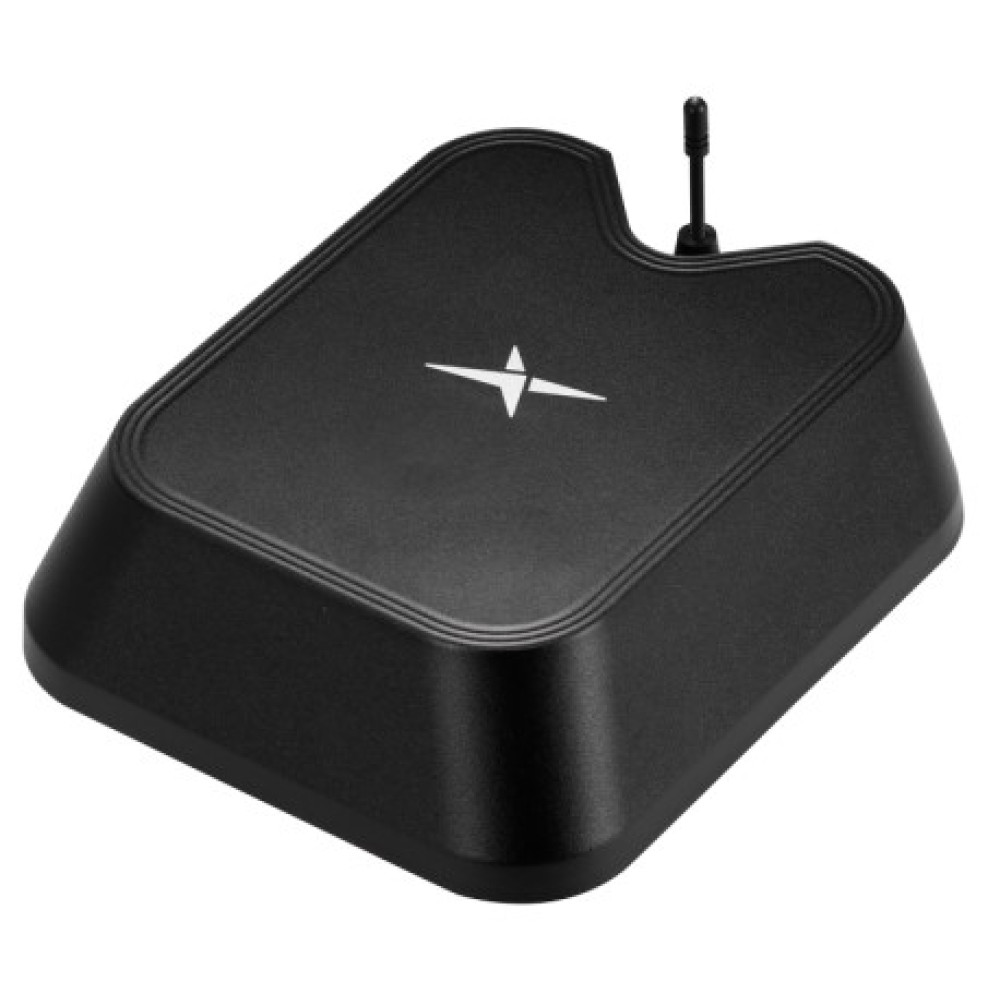

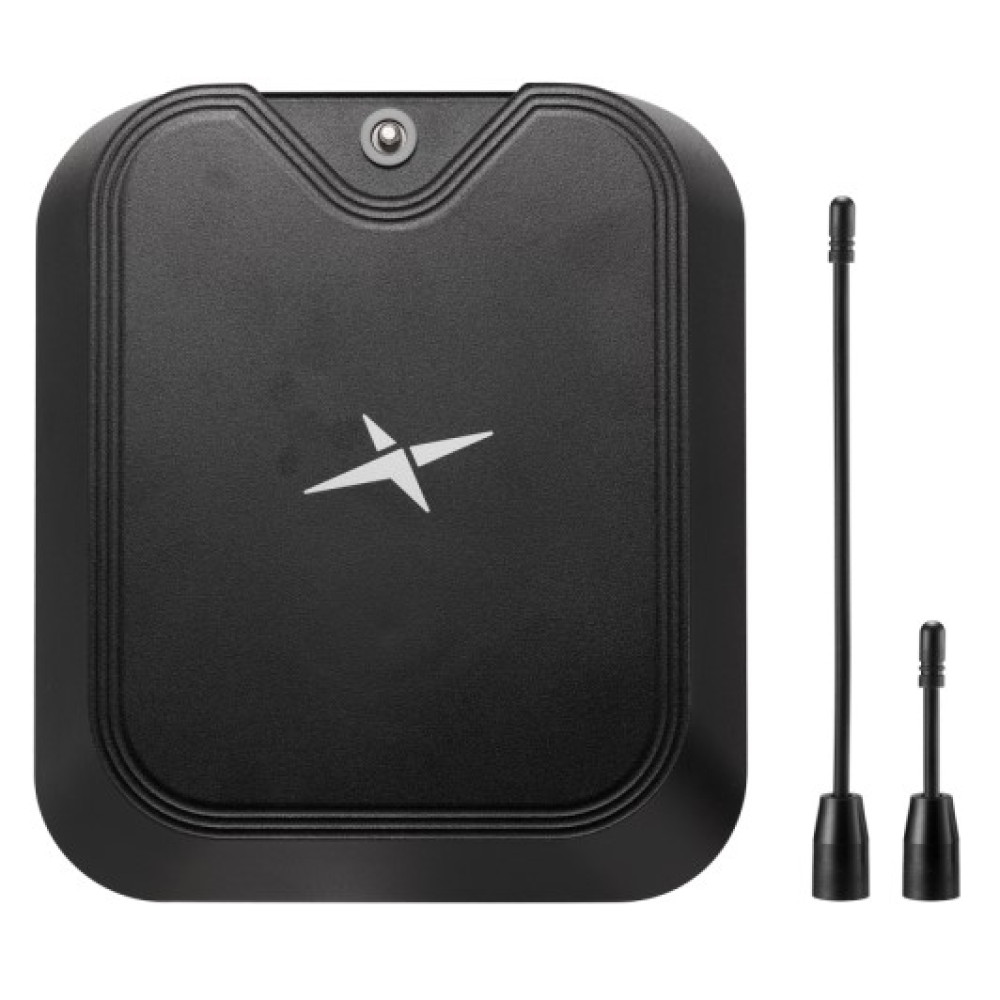

The PATR (Patriot) is a cutting-edge, multi-combination antenna engineered specifically for the Ford Interceptor vehicle, the most widely used police vehicle in the U.S. Designed to eliminate the need for multiple antennas, it offers 18-in-1 connectivity, including 9x9 MIMO 5G,/4G, 5x5 MIMO Wi-Fi, 2x Multiband GNSS (L1 & L1/L5), SDRAS, and LMR/TETRA, ensuring optimal performance for first responders and fleet vehicles. It is a compact, low-profile design that allows for seamless integration onto vehicle roofs, utilizing existing OEM mounting connections to simplify installation.
The Patriot guarantees enhanced signal strength and with its rugged IK08, IP69K-rated enclosure and ability to mount behind the roof ribs, this next-generation antenna delivers superior durability, reliability, and efficiency, making it one of the most versatile and compact solutions available today. With a small footprint of 205 x 180 x 60 mm and a whip height of up to 164 mm, the compact design of the Patriot ensures a low-profile, unobtrusive installation.

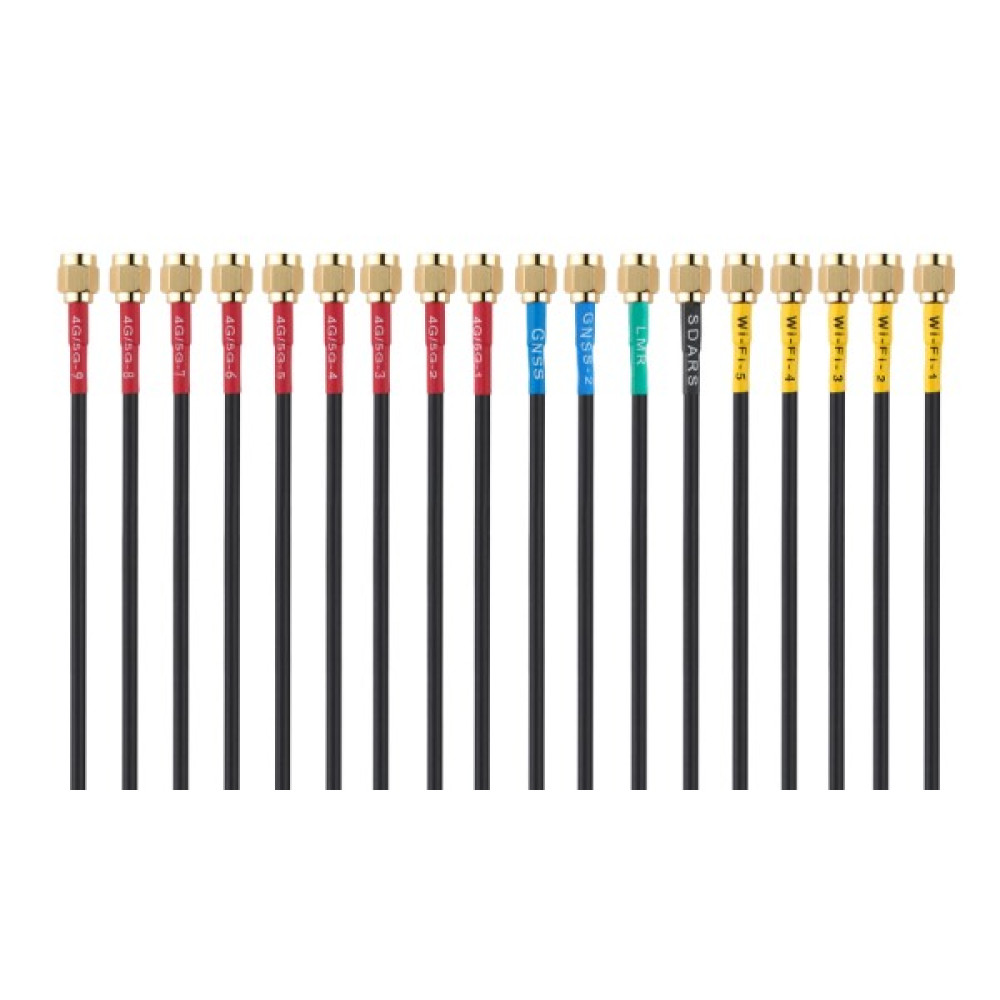

PATR.SP.18.B.0.3M, 18:1 Antenna with SMA/RP-SMA/Quad FAKRA Code E and Code D connector and staggered RG-174/TGC-1.5DS pigtail cables in Black
PATR.SP.18.W.0.3M, Same as above in White
PATR.SP.18.B.5M, 18:1 Antenna with SMA/RP-SMA/Quad FAKRA Code E and Code D connector and 5 meter RG-174/TGC-200 cables in Black
PATR.SP.18.W.5M, Same As above in White
PATR.FP.18.B.5M, 18:1 Antenna with FAKRA Code C/D/I/Quad FAKRA Code E and Code D connector and 5 meter RG-174/TGC-200 cables in Black
PATR.FP.18.W.5M, Same as above in White
| Technology | |
| Category | Antenna |
| Wireless | |
| 13:1 Antennas and Larger | 16:1 (8 LTE 6 WiFi GPS RF) |
| Pattern | Omnidirectional |
| Cellular Frequencies | 600 to 6000 MHz |
| Wi-Fi Frequencies | 2.4, 5.8, 7.125 GHz |
| UHF Frequency Bands | 380 - 400 and 700 - 900 MHz |
| Interfaces | |
| GPS | L1 and L5 bands |
| Mechanical | |
| Cabling | RG-174, TGC-1.5DS |
| Connector Type | SMA(M), RP-SMA(M), /Quad FAKRA Code E and Code D |
| Enclosure | UV Resistant PC |
| Color | Black or white |
| Weight | 840 g including cables & whip |
| Dimensions | 205 L x 180 W x 60 H mm |
| Ratings | |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 95% non-condensing |
| RoHS Compliant | RoHS and REACH compliant |
| Certifications | IP69K, IK08 |
| Download Name | File Size |
| Taoglas Patriot Series Datasheet | 33.28MB |
