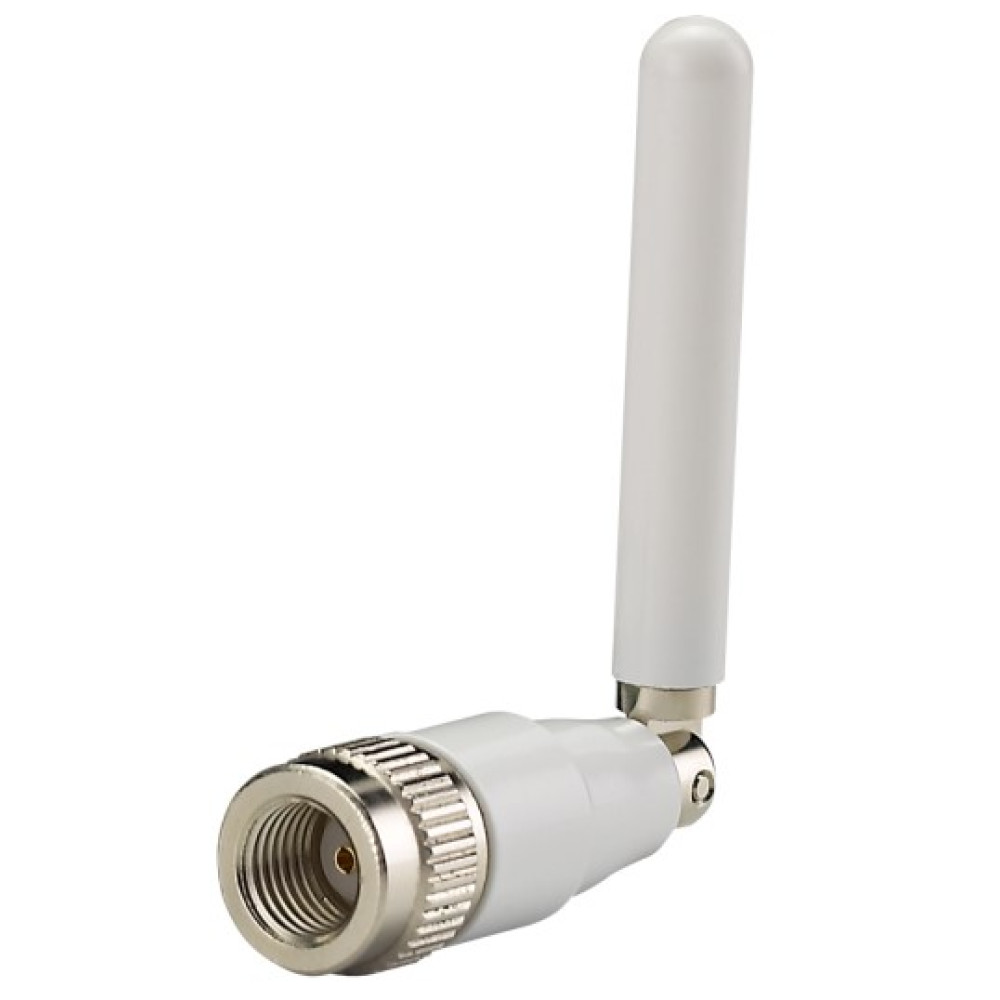

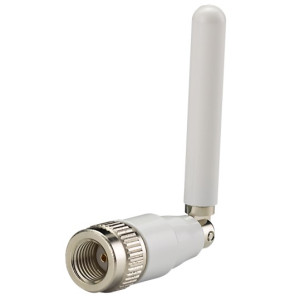

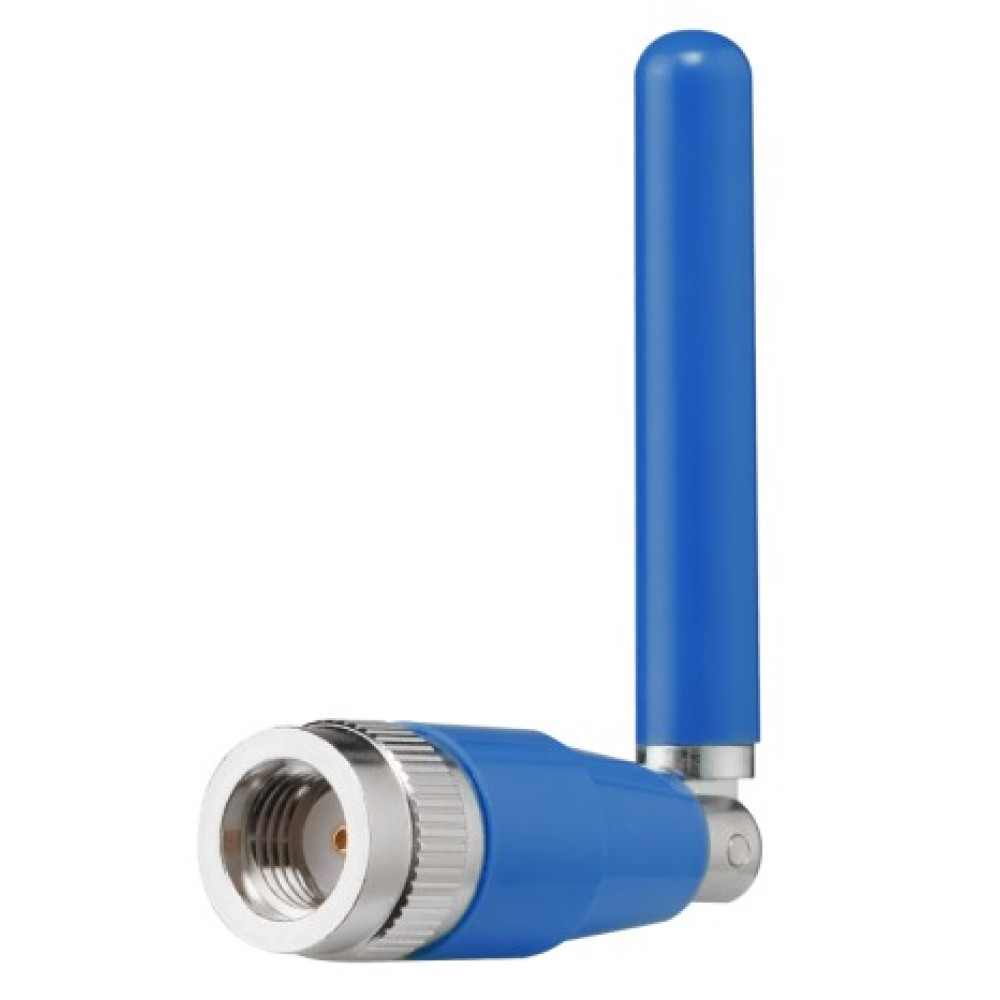

Taoglas GW.05.0153 RP-SMA (M) Hinged Antenna w/Dual Band WiFi 2.4/5.8-7.125 GHz

Taoglas GW.05.0153 Dual Band WiFi Hinged Antenna with RP-SMA (M) Connector

The GW.05.0153 dual-band WiFi hinged rotatable antenna is a high-efficiency monopole antenna with the capacity to cover WiFi 6 frequencies up to 7.125 GHz. Compared to other much larger antennas on the market, it has superior wide-band high-efficiency characteristics. The bright green color of the antenna adds a unique quality look and feel to any modern WiFi application point, device, or router. It also provides differentiation if using other similar looking antennas on the same device. The connector used is RP-SMA (M), the standard mating part for an antenna to most WiFi application points and routers on the market. The GW.05.0153 is for WiFi, WLAN, Zigbee, Bluetooth, and 802.11a/b/g/n/ac applications.

The antenna works best connected directly to the ground-plane of the device’s main PCB or to the outside of a metal housing. However, it still has very good performance (>50%) even without connecting to a ground-plane, making it a great all-round small WiFi terminal antenna. In an un-grounded installation condition, it also comes below the max peak gain requirements for most WiFi modules which are usually 2dBi, so it can comply with FCC regulations.

Key Features

• Dual-Band WiFi 2.4/5.8-7.125 GHz
• Peak Gain on all Bands -1.0~2.0dBi (mounted on PCB)
• Wide-band High Efficiency >50%
• Rotatable hinge design for optimal reception
• RP-SMA(M) Hinged Connector
• Dimensions: Height 62.3 mm, Diameter 10mm
• RoHS & REACH Compliant
