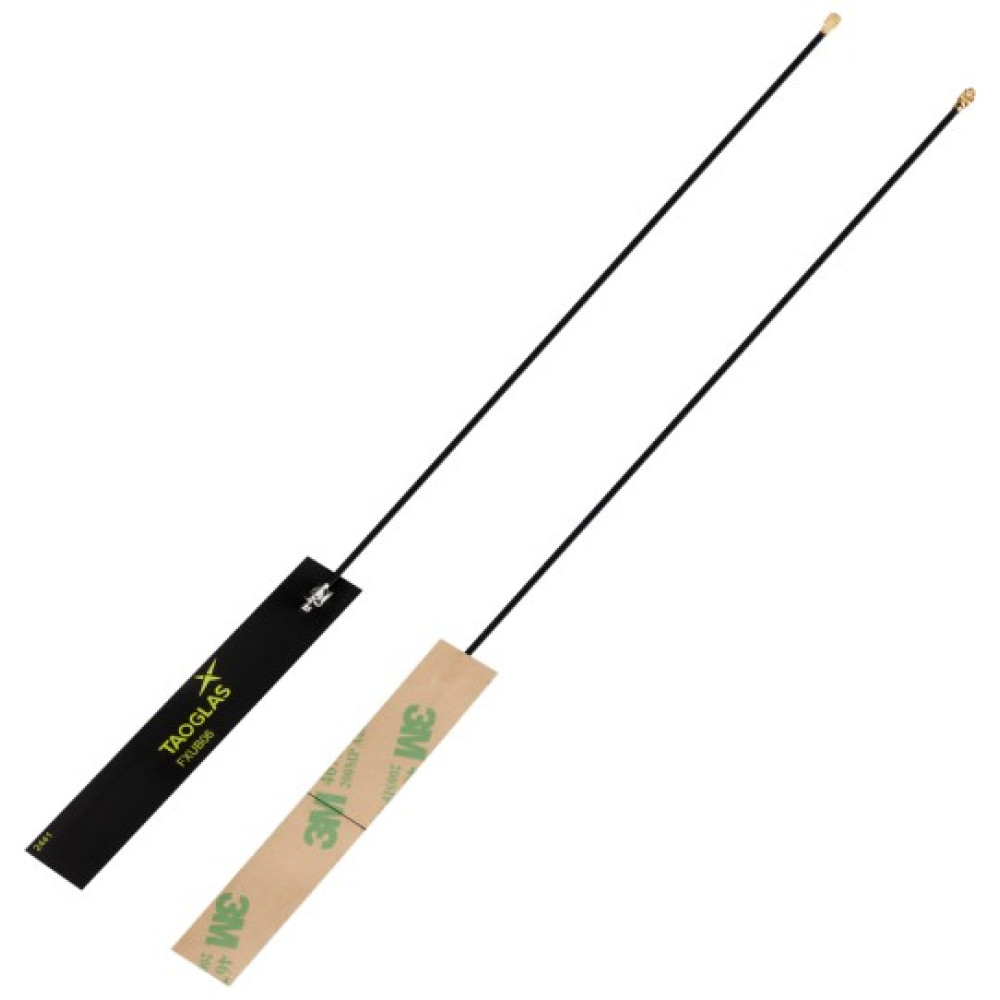

Taoglas FXUB06 (Maximus) Flexible Wideband 5G/4G Antenna (600-8000 MHz)

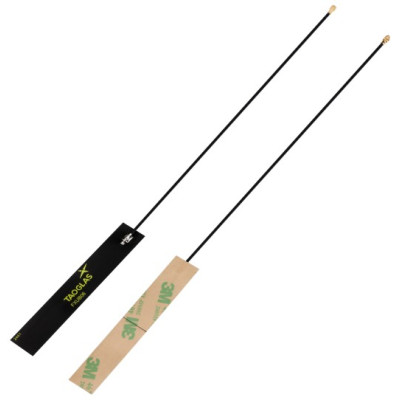

Taoglas FXUB06 LTE Wideband Flexible Antenna (600 - 8000 MHz) with IPEX MHF1 Connector

The FXUB06 is the smallest Taoglas wideband cellular flex PCB antenna by footprint size. Engineered to cover all global working frequencies in the 600-8000 MHz spectrum with efficiencies of up to 60%, it is the perfect solution when size constraints limit the use of a larger antenna. It covers all cellular 5G and 4G bands with fall back to 3G/2G, and it also operates at NB-IoT, Cat-M, Wi-Fi, ISM and Wi-Fi 6 frequencies. This wide band coverage enables designers to use only one antenna to cover all frequencies and future proofs device design for global connectivity.

Typical Applications

• Gateways, Routers and Private LTE Networks
• In-Building Connectivity and Security Systems
• Point of Sales Kiosks and Retail Digital Signage
• Connected Industry and Smart Metering
• Handheld Devices and Tablets
• Mobile Wireless Camera Systems

The antenna has a flexible body with ground breaking high efficiencies on all bands, and isground-plane independent with a cable and connector for easy installation. At just 90.4 x 15 x 0.24 mm, the antenna is compact and ultra thin. It is integrated into a device by a simple “peel and stick” process, attaching securely to non-metal surfaces via strong, 3M adhesive. It is also the ideal antenna to fit in devices that are being retrofitted with wireless functionality, as it will cover non cellular applications such as 868, 915 MHz or Zigbee applications. Its inherently wide bandwidth is more resistant to detuning than traditional small but narrow-band legacy antennas. It is an ideal choice for any device maker that needs to keep manufacturing costs down over the lifetime of a product, as the same antenna can be used if the radio module is upgraded to work on a different frequency band.

Key Features

• 600-8000 MHz Wideband
• 5G/4G fully operational on all Sub-6 GHz bands
• Efficiencies up to 60% on all cellular bands
• Ground plane independent
• Dimensions: 90.4 x 15 x 0.24 mm
• Connector: I-PEX MHF® I (U.FL compatible) or SMA (M)
• Cable: 150 mm of 1.37 mm diameter coaxial
• RoHS & REACH Compliant

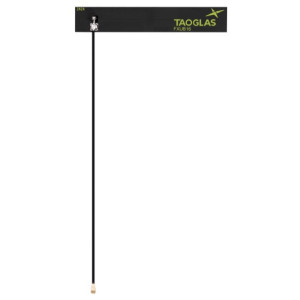

FXUB06, FXUB16, PC60 & PC66 Overview
