The PANL-431 is a state-of-the-art, multi-functional panel antenna designed to deliver reliable connectivity on the go. It integrates four cellular antennas, three tri-band Wi-Fi antennas, and one dual-band GNSS antenna into a compact, rugged enclosure. It is specifically engineered for portable, case-mounted, and mobile applications where reliable connectivity is essential. The PANL-431 delivers robust wireless performance across a wide range of environments, from emergency response and public safety to industrial, automotive, and remote field operations.
Covering an ultra-wide frequency range from 410 MHz to 6000 MHz, the PANL-431 supports all major 4G LTE and 5G cellular technologies, as well as tri-band Wi-Fi (2.4 GHz, 5 GHz, and 6 GHz) for next-generation standards like Wi-Fi 6E and Wi-Fi 7. This ensures seamless connectivity across rural and urban environments, with lower bands providing long-range coverage and higher bands delivering high-speed performance. The inclusion of dual-band GNSS (L1 and L5) guarantees accurate positioning even in challenging conditions.
The antenna’s omnidirectional radiation patterns provide uniform coverage in all directions while the high antenna gain improves signal strength even when partially obstructed by the case material. MIMO support (4×4 for cellular and 3×3 for Wi-Fi), guarantees improved throughput and reliability, which is essential for mobile connectivity applications. The cross-polarized antennas enhance signal reliability, even when the case is moved or placed in environments with multipath interference. If the router in use has only two Wi-Fi ports, the third PANL-431 Wi-Fi antenna can be repurposed for Bluetooth applications, adding flexibility for short-range device connectivity.

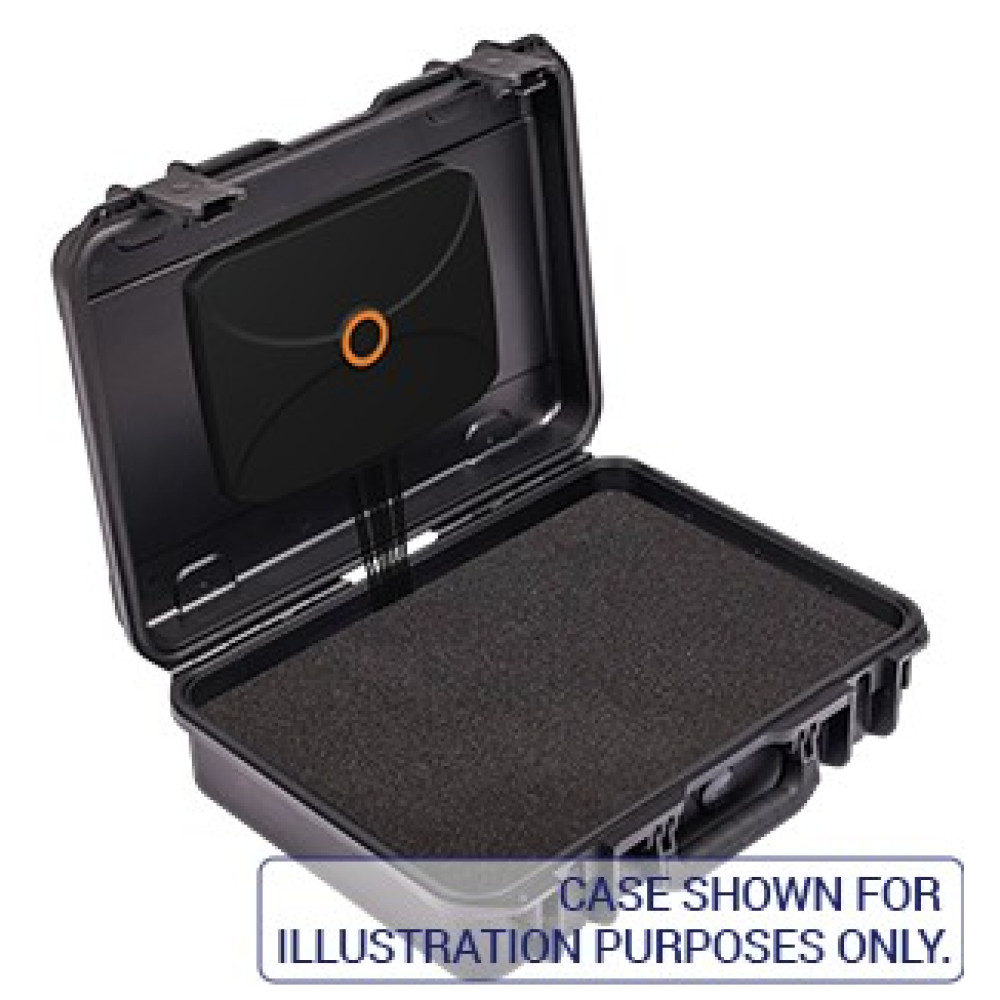

Its low-profile, compact design and IP65-rated enclosure allow seamless integration inside portable cases without compromising durability or available space. Velcro mounting and short coaxial cables simplify installation while minimizing signal loss.
With its rugged construction, advanced wireless performance, and flexible mounting options, the PANL-431 is the reliable antenna solution for teams that need dependable connectivity wherever the mission takes them. Whether deployed in urban, rural, or remote environments, it ensures seamless communication and accurate positioning - keeping operations online when every second counts.
| Technology | |
| Category | Antenna |
| SFP Characteristics | |
| Cable Length | 0.5m |
| Wireless | |
| 8:1 Combination Antennas | 8:1 (4 LTE, 3 WiFi, GPS) |
| Pattern | Omnidirectional |
| Cellular Frequencies | 410 - 6000 MHz |
| Wi-Fi Frequencies | 2400 - 2500 MHz, 5000 - 7200 MHz |
| Gain | 7.8 dBi |
| Polarization | Cellular/WiFi: Linear Vertical and Horizontal, GNSS: RHCP |
| Impedance | 50 ohm |
| Interfaces | |
| GPS | L1: 1575.42 MHz, L5: 1176.45 MHz |
| Mechanical | |
| Cabling | RTK-031 |
| Connector Type | SMA (M)/RP-SMA (M) |
| Mounting | Adhesive Mount and Suction Mount |
| Color | Black |
| Ratings | |
| Operating Temperature | -40°C to +80°C |
| Humidity | Up to 98% |
| RoHS Compliant | Yes |
| Certifications | IP65, IK08 |
| Wind Velocity Rating | ≤160 km/h |
| Download Name | File Size |
| Poynting PANL-431 Datasheet | 2.09MB |
