The OMNI-298 is a high-performance, cross-polarized, dual-band Wi-Fi omnidirectional antenna designed for fixed wireless access (FWA) deployments. This versatile antenna operates across the 2.4 GHz and 4.9 to 7.2 GHz frequency bands, making it compatible with both legacy Wi-Fi technologies and the latest advancements, including Wi-Fi 7. The OMNI-298 is engineered with 2x2 MIMO technology, utilizing vertically polarized radiating elements to deliver reliable omnidirectional coverage. The antenna’s design focuses on optimizing performance in FWA applications by removing the horizontal elements present in other models, simplifying installation, and ensuring efficient coverage.
In addition to its Wi-Fi capabilities, the OMNI-298 supports the 3.3 to 4.2 GHz band, commonly used for Citizens Broadband Radio Service (CBRS) in 5G applications, with a peak gain of 7.8 dBi. This feature enhances the antenna's versatility, making it an excellent choice for both Wi-Fi and 5G connectivity.
With high-gain vertical antennas providing a peak gain of 10 dBi, the OMNI-298 ensures robust wireless performance across multiple frequency bands, making it ideal for a wide range of Wi-Fi access points in both residential and commercial settings.
Technology | |
Category | Antenna |
Wireless | |
2:1 Combination Antennas | 2:1 (2 WiFi) |
Pattern | Omnidirectional |
Wi-Fi Frequencies | 2.4 / 4.9 - 7.2 GHz |
VSWR | <2:1 |
Gain | 10 dBi |
Polarization | Linear Vertical |
Impedance | 50 ohm |
Mechanical | |
Cabling | 2m Twin HDF 195 |
Connector Type | SMA (M) |

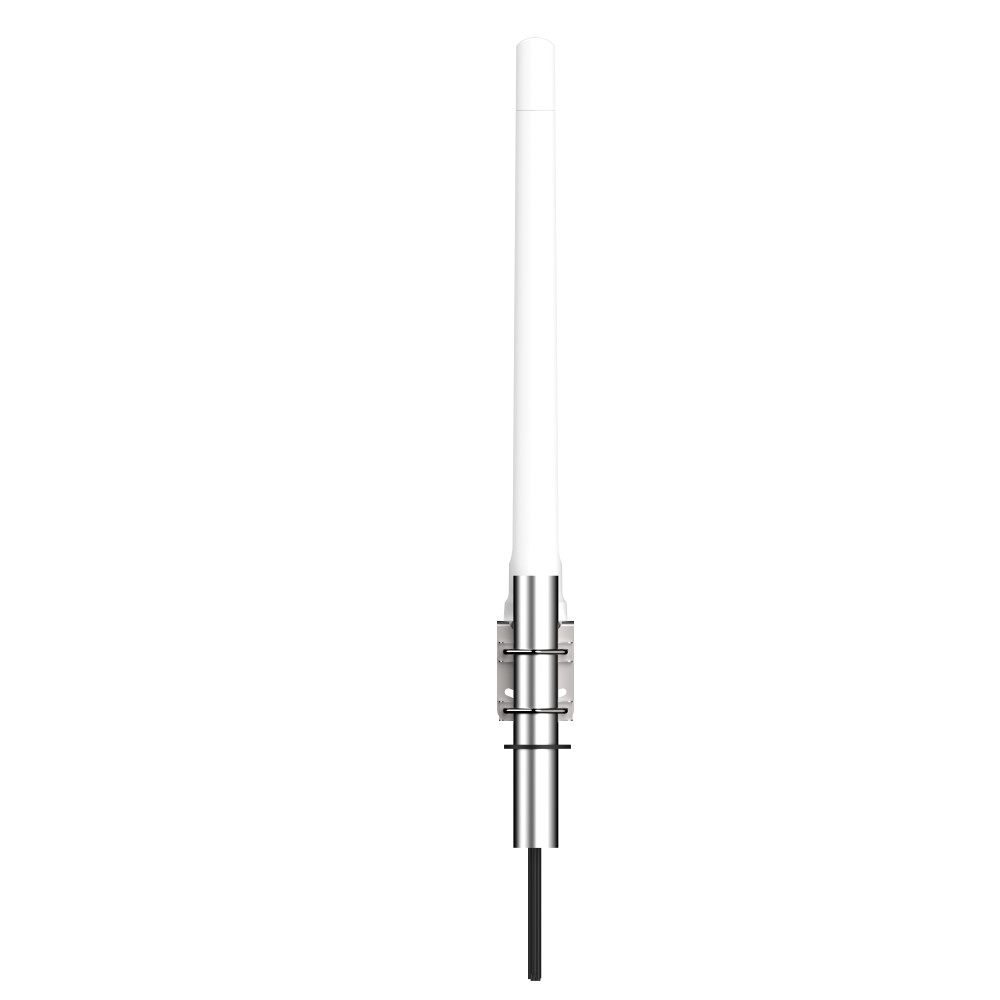

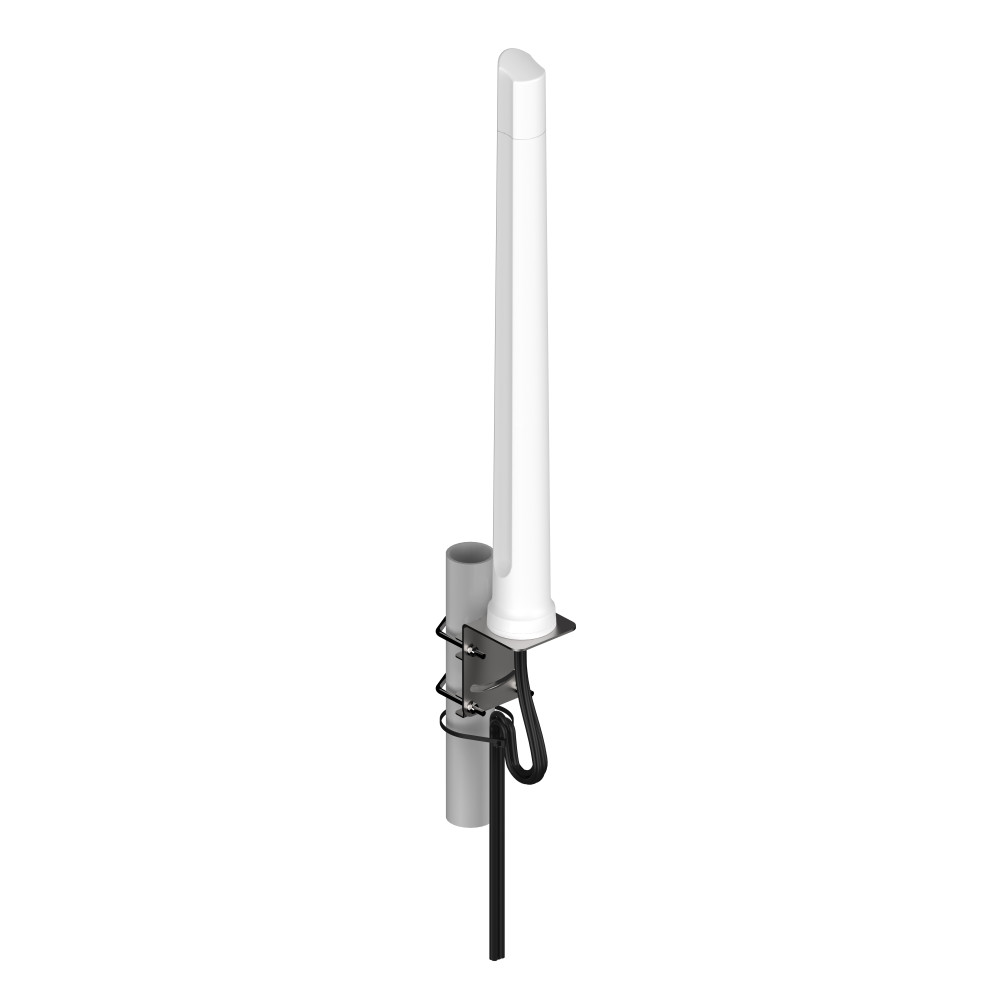

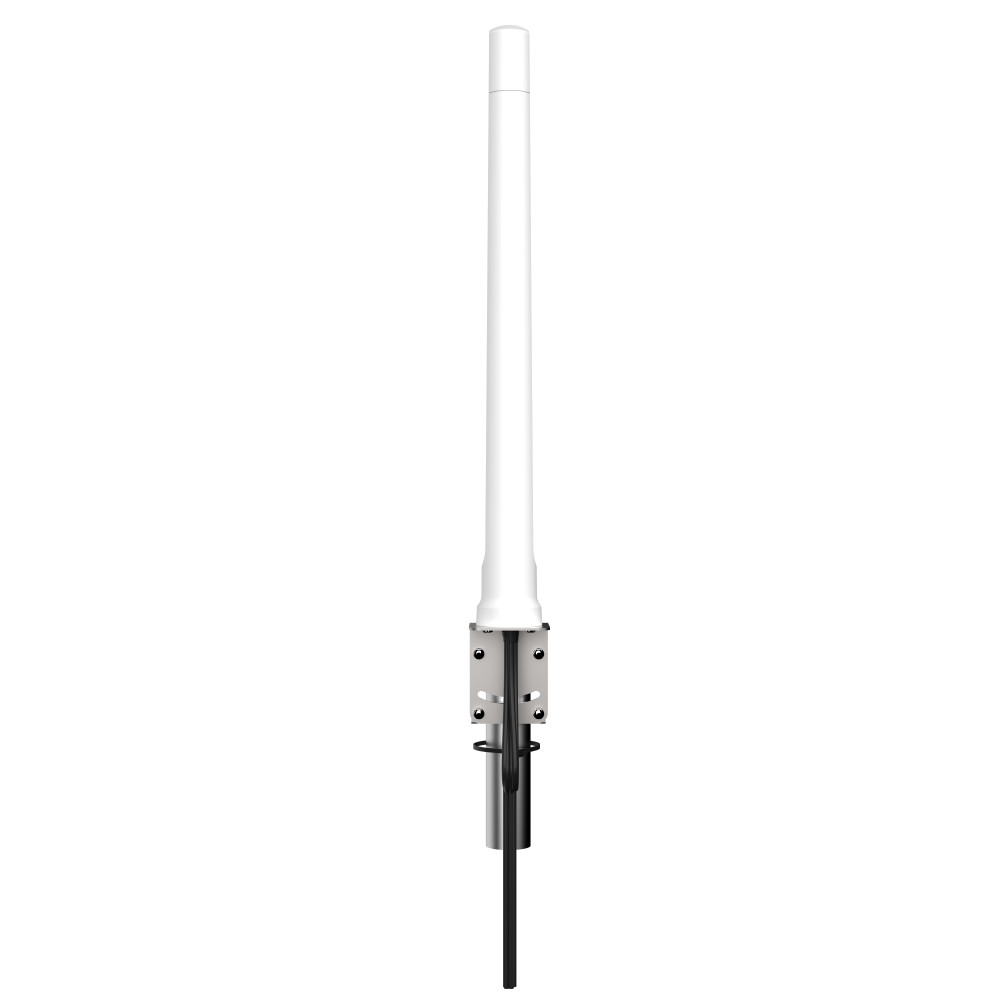

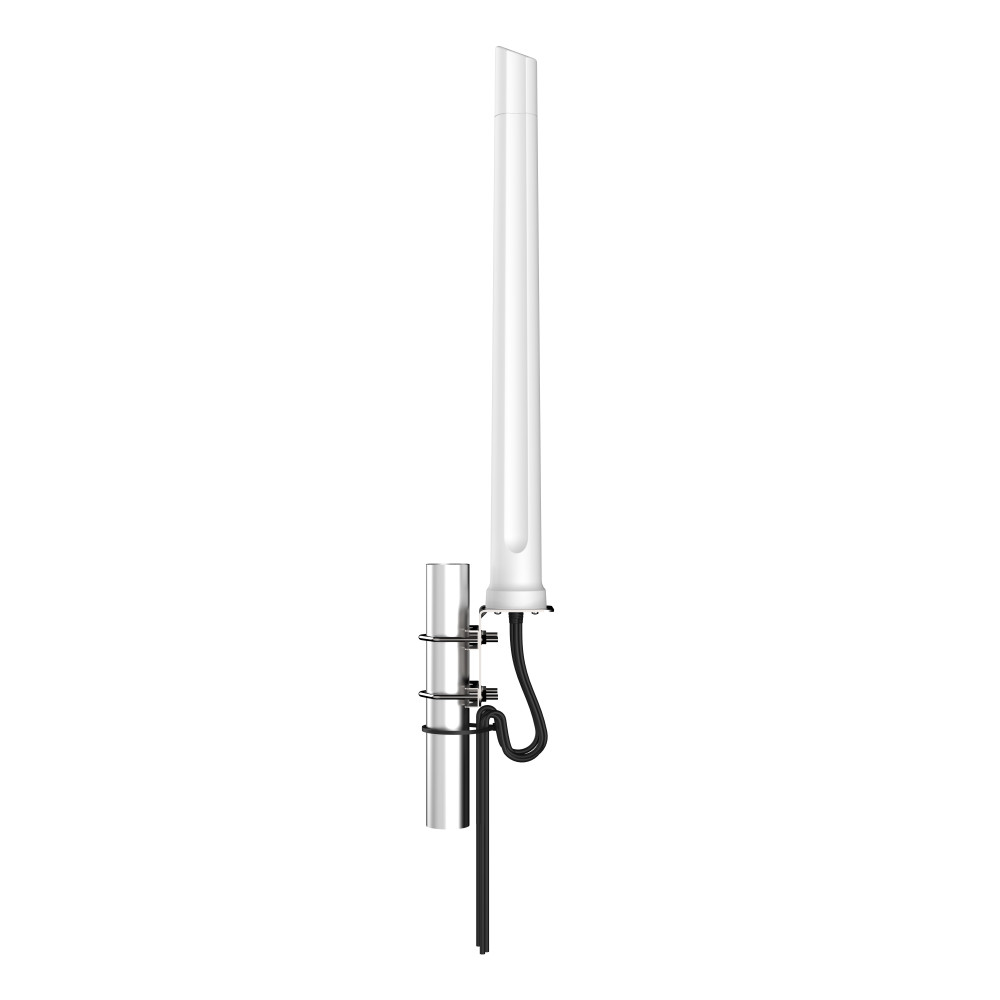

Mounting | Wall or pole mount |
Color | White |
Weight | 0.58 kg |
Dimensions | 646 mm x Ø71 mm |
Ratings | |
Operating Temperature | -40°C to +80°C |
Humidity | Up to 98% |
RoHS Compliant | Yes |
Certifications | IP65, IK08 |
