Mobile Mark EM-LTE Flexible Embedded Cellular Antenna, 695-2700 MHz, 2dBi Gain

Mobile Mark EM-LTE Flexible LTE Internal Strip Antenna
Model: EM-LTE
Availability: 3 Weeks or Less
FREE SHIPPING !
Qty: Add to Cart

Mobile Mark EM-LTE Flexible LTE Internal Strip Antenna

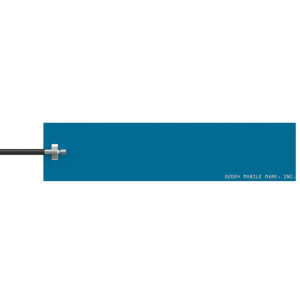

The EM-LTE embedded antenna features an innovative flexible circuit board material that bends and contours. This allows the antenna to fit in almost any small space or enclosure.

This antenna is ideal for a wide range of products including smart lighting, parking meters, public bike rentals, drones, ATMs, and vending machines. The antenna functions on the 695 to 960 MHz and 1710 to 2700 MHz bands at 2 dBi gain. The maximum power input is 5 watts.

A 12-inch RG-174 flexible cable is soldered to the feed point and an SMA male connector is used to make the connection. The antenna may be mounted with VHB tape.

Technology
CategoryAntenna
Wireless
Single / SISO AntennasCellular
PatternOmnidirectional
Cellular Frequencies695 - 2700 MHz
Wi-Fi Frequencies2.4 - 2.5 GHz and 4.9 - 6.0 GHz, 3x3 MIMO
Mechanical
Dimensions1.3” x 5.4 inches (3.4 x 13.7 cm)
Ratings
Warranty3 years
Download NameFile Size
EM-LTE Datasheet265.05KB
EM-LTE Radiation Pattern185.24KB
