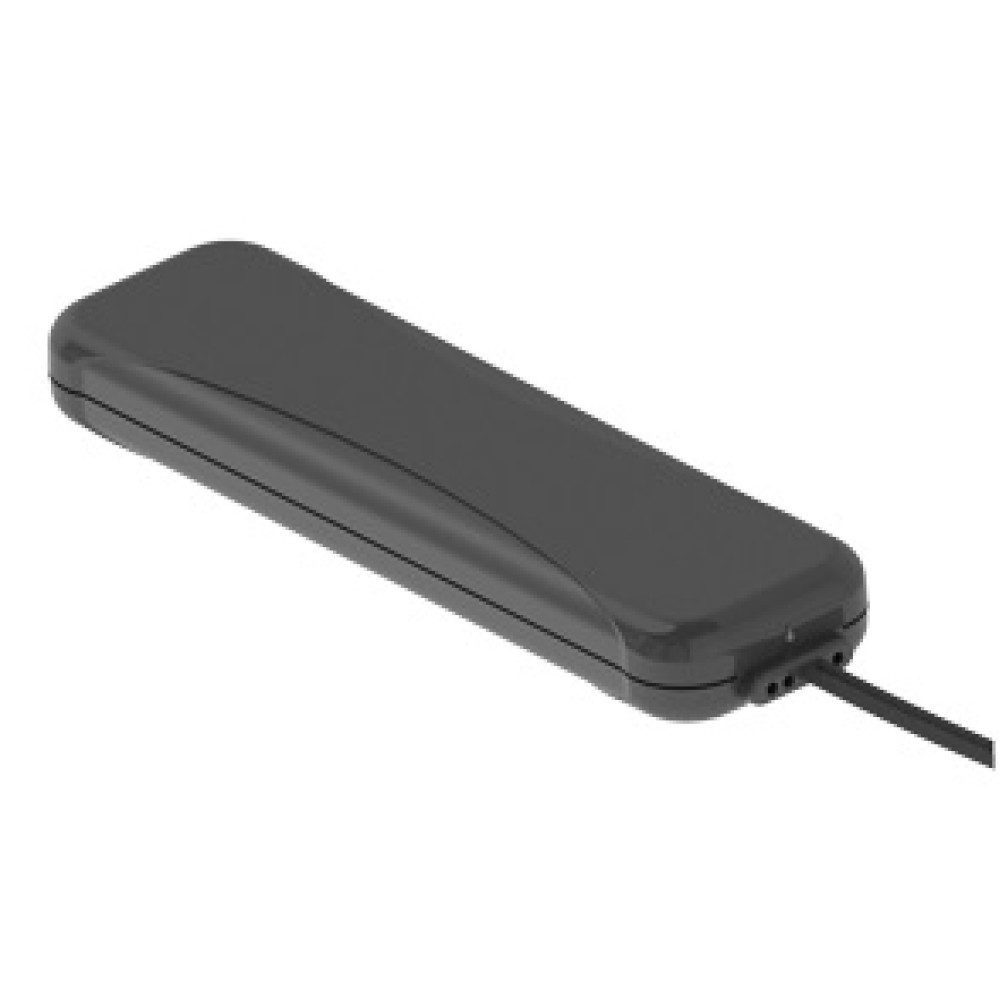

The CVW208 is a covert 6-2-6 Multi-Band MIMO Antenna that includes two 5G/LTE Cellular elements. This antenna covers 617-960 & 1710-7200 MHz frequencies.
| Technology | |
| Category | Antenna |
| SFP Characteristics | |
| Cable Length | 10 feet |
| Wireless | |
| 2:1 Combination Antennas | 2:1 (2 LTE) |
| Pattern | Omnidirectional |
| Cellular Frequencies | 617 - 960/1710 - 7200 MHz |
| VSWR | 2:1 VSWR over range |
| Gain | 2 - 4 dBi |
| Impedance | 50 ohm |
| Power | 10 W |
| Mechanical | |
| Cabling | LMR-100 |
| Connector Type | SMA male |
| Mounting | Adhesive, window, desk, wall mount |
| Color | Black |
| Material | Plastic |
| Dimensions | 2.0" wide x 7.0" long x .75" high |
| Ratings | |
| Operating Temperature | -40° to +80° C |
| Certifications | IPx7 |
| Warranty | 3 years |
| Download Name | File Size |
| Mobile Mark CVW208 Datasheet | 149.78KB |
