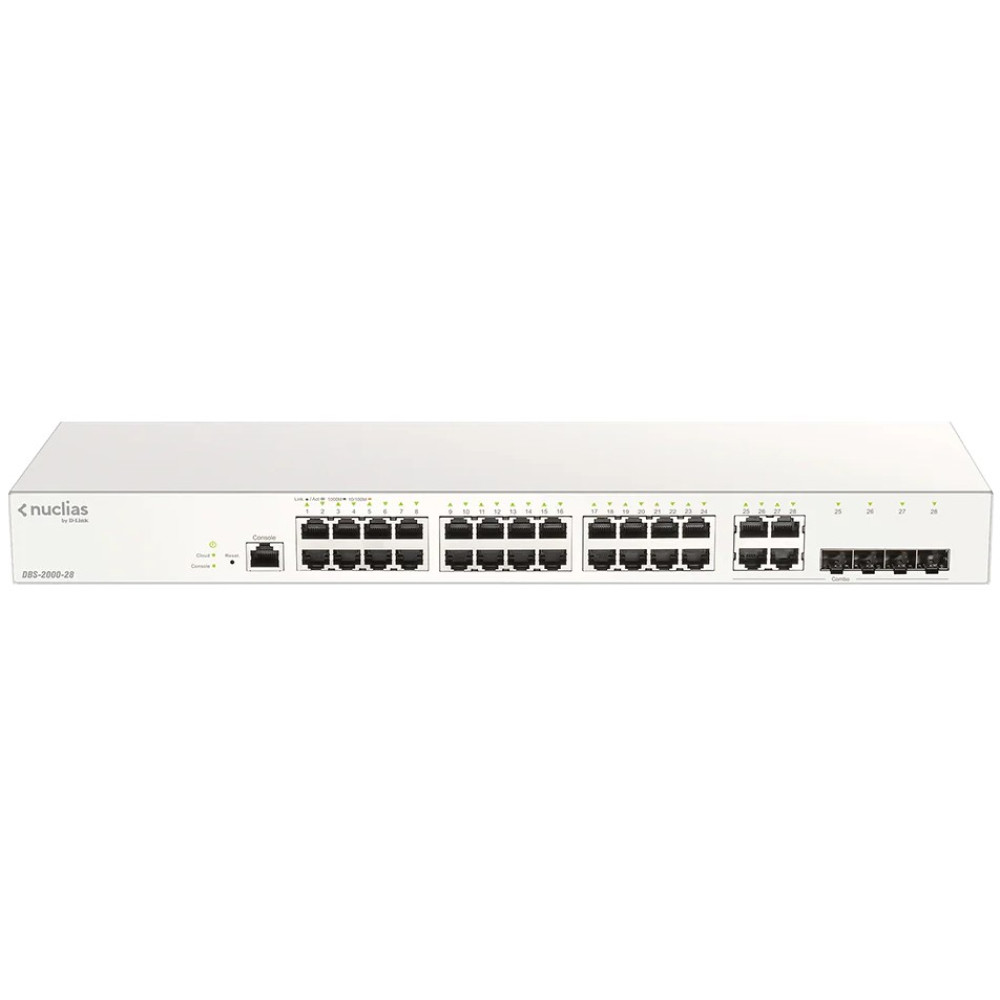

The DBS-2000-28 Nuclias Cloud-Managed Switch is deployed as a pre-configured, zero configuration switch controlled through the Nuclias Cloud. It is a best-in-class switch designed specifically for distributed networks, featuring 28 ports with 4 combo GE/SFP ports.
Equipped with a complete line-up of L2 and security features, the DBS-2000-28 includes IGMP snooping, voice VLAN, Spanning Tree Protocols (STP and RSTP), Access Control Lists (ACLs) and Link Aggregation Control Protocol (LACP). Network maintenance features include loopback detection and cable diagnostics. Loopback detection is used to detect loops created by a specific port and automatically shut down the affected port. The cable diagnostic feature, designed primarily for administrators and customer service representatives, can rapidly discover errors and determine the cable quality, allowing hassle-free diagnostics and maintenance.
To ensure the safety and reliability of all sensitive traffic, all management data to and from the cloud is separated from regular data using an SSL encrypted out-of-band connection. In addition, Nuclias offers a range of industry standard authentication and authorisation methods to control user access. The administrator can configure external RADIUS servers and set up IP and MAC-based access control lists to authenticate and authorise clients and create a safe and trusted network environment.
Nuclias Cloud is a complete cloud-managed networking solution for small to medium-sized organizations with one or more sites. Nuclias Cloud-Managed Switches come pre-configured and are controlled remotely through the Nuclias Cloud web-browser interface or Nuclias app. That means your business can enjoy feature-rich yet easy-to-use cloud management, rapid deployments, and unlimited scalability to match the requirements of your network. The DBS-2000-28 comes with a 1-year license included. An additional 1, 3, or 5 year license can be purchased thereafter.

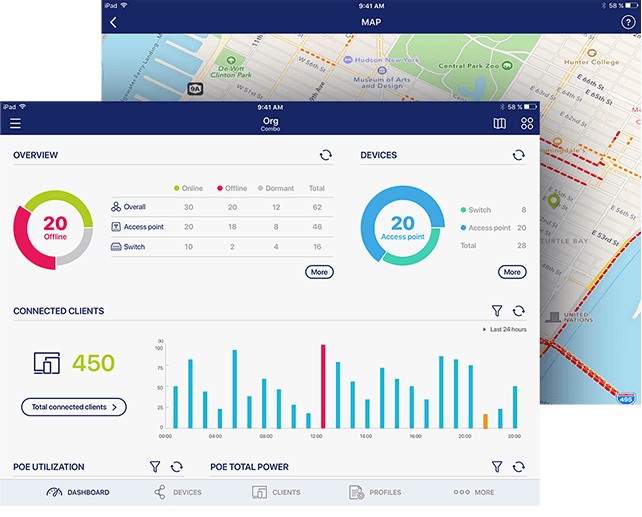

![]() | Centralized ManagementManage your entire Nuclias network from anywhere using D-Link’s easy-to-use Nuclias Cloud Management platform. Segment the network, manage multiple switches simultaneously, enforce security policies, and monitor live network statistics remotely, all from the cloud with a few clicks.
Unlimited ScalabilityNuclias Cloud enables businesses to quickly configure, deploy, maintain, and expand the entire network remotely. All without the expenses of on-site staff, maintenance, and additional equipment. Configuration profiles can be created and pushed through the cloud anytime, anywhere.
Simplified Management PoliciesNuclias Cloud empowers you with essential tools, such as Content Filters, Firewalls or Application Control. Define your policies as necessary, and then roll them out across the entire network for greater network-wide consistency. |
| Technology | |
| Category | Ethernet Switch |
| Ethernet Ports | 24 Gigabit (10/100/1000 Mbps), 4 GE/SFP Combo |
| Fiber Ports | 4 GE/SFP Combo |
| Standards | IEEE 802.3, IEEE 802.3u/802.3z, IEEE 802.3ab, IEEE 802.3x, Supports manual/auto MDI/MDIX configuration, Supports half/full-duplex operation, IEEE 802.3az compliant |
| MAC Table Size | 8 K |
| Power | |
| Power Consumption | 17.32 W |
| Input Voltage | 100 to 240 V AC |
| Mechanical | |
| Weight | 2.15 kg |
| Dimensions | 440 x 140 x 44 mm |
| Ratings | |
| Operating Temperature | -5 to 50 °C (23 to 122 °F) |
| Storage Temperature | -20 to 70 °C (-4 to 158 °F) |
| Humidity | 0 - 95% non-condensing |
| Certifications | CE, FCC, VCCI, BSMI |
| Safety Standards | UL, CB, LVD, BSMI, CCC |
| MTBF | 992,594 hours |
| Download Name | File Size |
| D-Link DBS-2000 Series Datasheet | 1.44MB |
