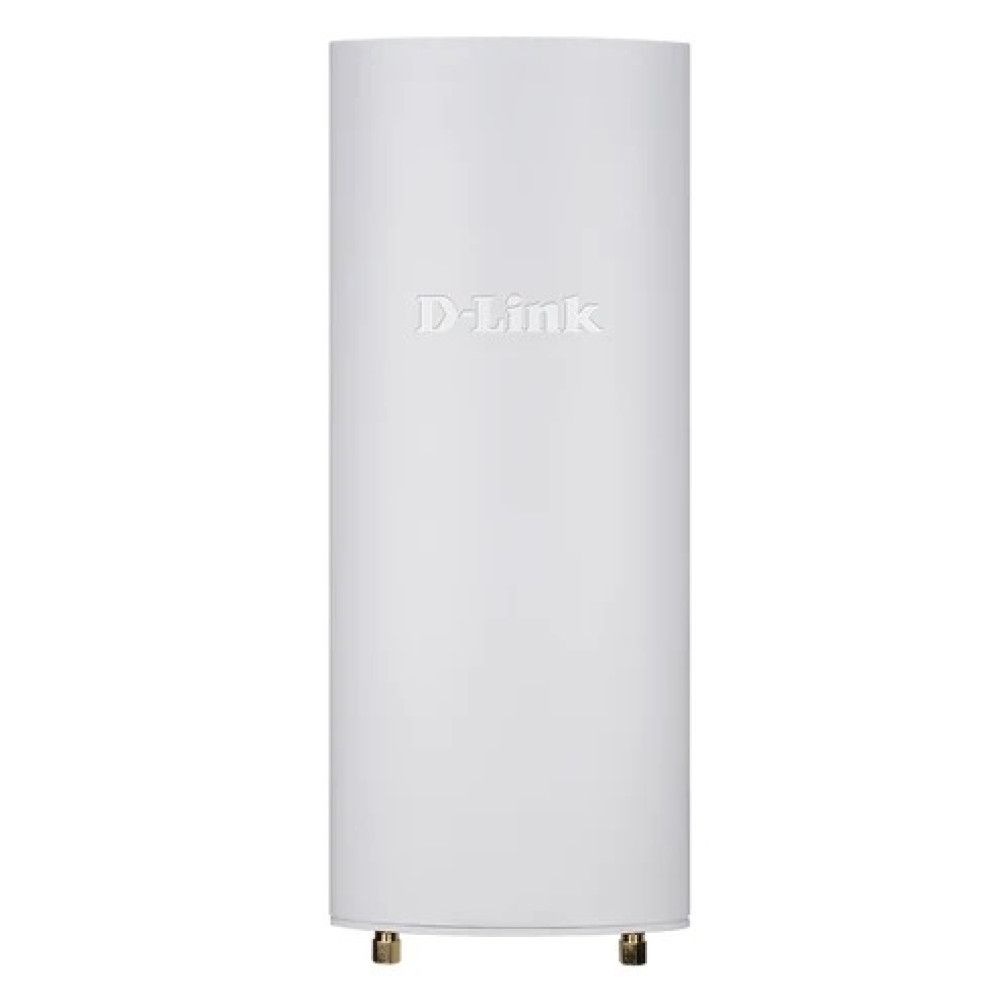

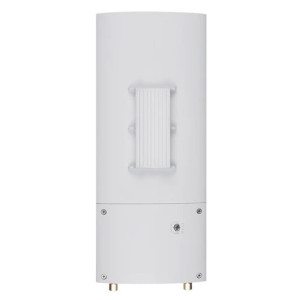

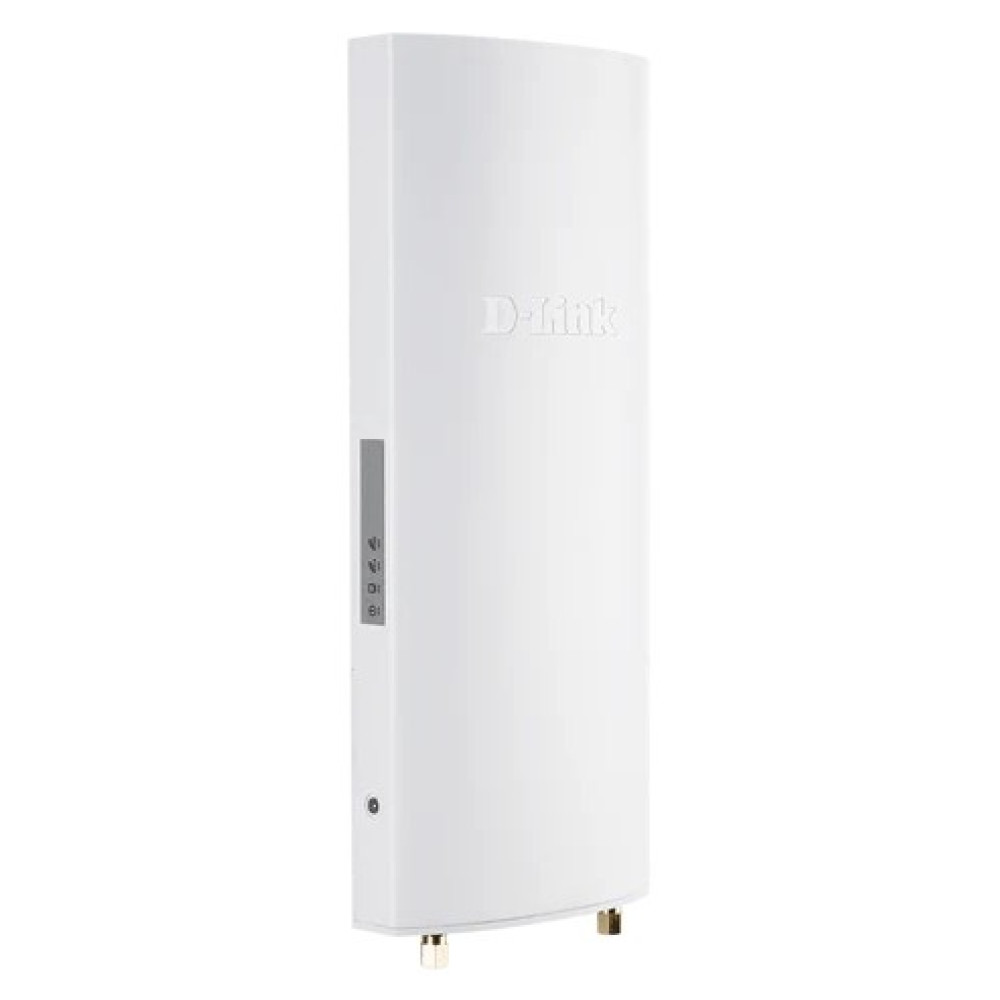

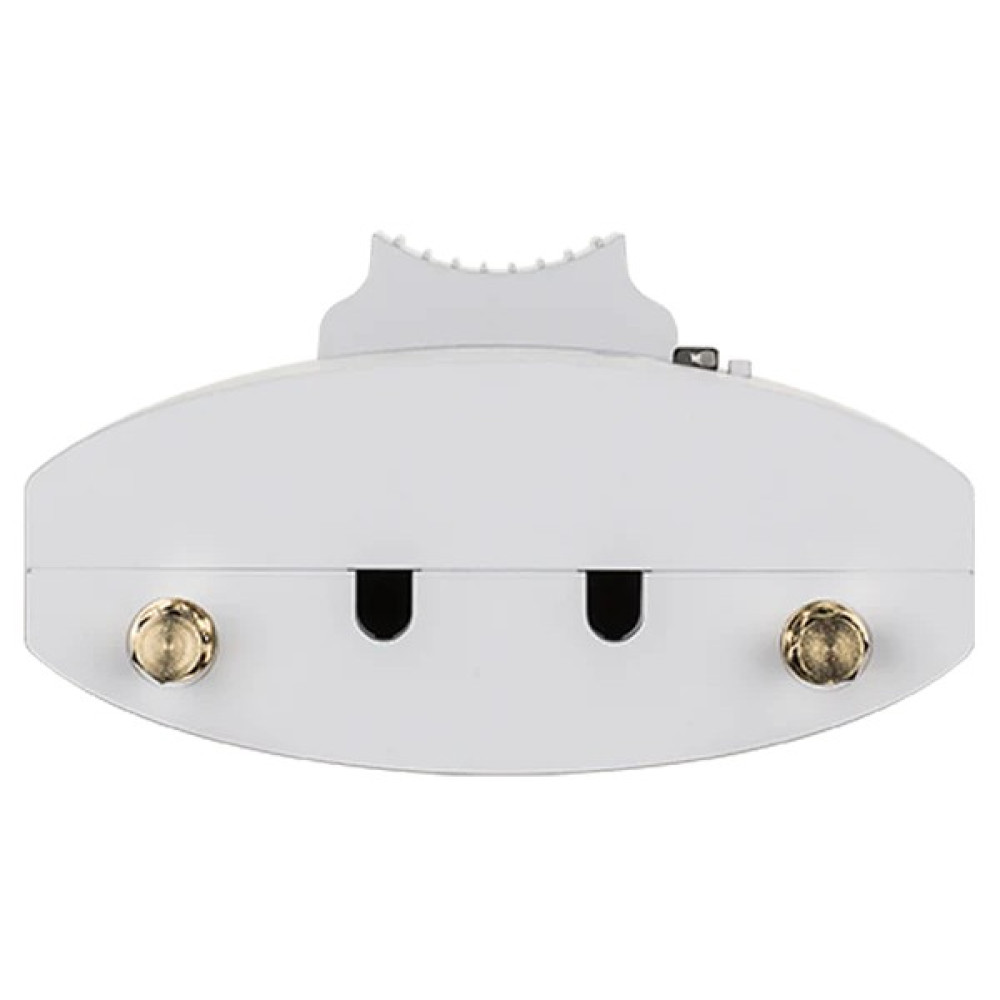

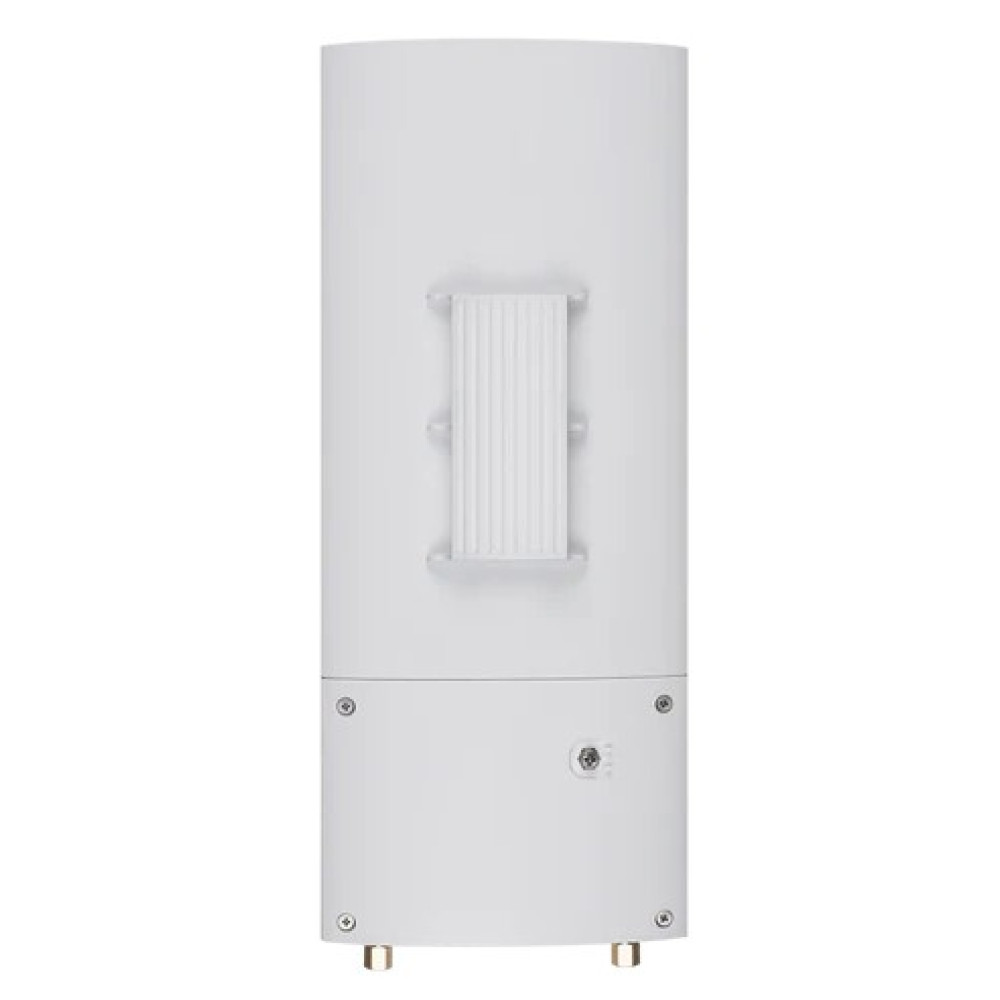

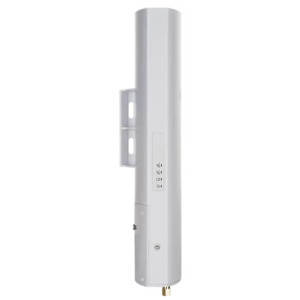

The DBA-3620P is a Wave 2, outdoor, dual-band Wi-Fi 5 access point designed for enterprise environments, featuring cloud-based management through D-Link's Nuclias Cloud platform. With next-generation 802.11ac Wave 2 dual-band concurrent 2.4 GHz and 5 GHz radios, it offers high combined data rates to wireless clients and wide-ranged wireless connectivity. With an impressive protection rating to defend against dust and water, the DBA 3620P is equipped to withstand almost any outdoor environment.
It features include PoE (Power over Ethernet) for simplified installation, support for high-density environments, and advanced management tools like zero-touch deployment and multi-site control. MU-MIMO is the ultimate weapon in handling congestion by being able to support more simultaneous streams of data. Your Access Point can serve more people at the same time. That’s less waiting time all round.
Complete control comes as standard with the DBA-3620P. Combined with the Nuclias Cloud management software, a variety of the latest in network security and management tools are at your fingertips. You can rest assured that the best of the best are hard at work keeping your network better protected and hitch free.
Nuclias Cloud makes remote network management a breeze. All your management software and hardware is hosted in the Nuclias Cloud and accessible from any laptop or mobile. Businesses of any size and level of IT resources can reap all the benefits of Cloud Networking to boost productivity and enhance competitiveness. The DBA-3620P comes with a 1-year license included. An additional 1, 3, or 5 year license can be purchased thereafter.
![]() | 100% Cloud ManagedCompatible with Nuclias Cloud solution, this product is ideal for business networks of any size. Deploy networks easily with zero-touch deployments and remote management from a web browser or the free app.
Quick VPNNuclias enables easy P2P VPN tunneling for better business privacy and remote working. Rapidly establish your VPN via the Nuclias dashboard for more secure connections.
Enhanced SecurityCommunications between Nuclias devices and the cloud are secured with end-to-end SSL encryption. Features like WPA3 encryption, MAC address filtering, and support for RADIUS servers help protect the network from unauthorized access.
Simplified Management PoliciesNuclias Cloud empowers you with essential tools, such as Content Filters, Firewalls or Application Control. Define your policies as necessary, and then roll them out across the entire network for greater network-wide consistency. |
| Technology | |
| Category | WiFi Access Point |
| Standards | IEEE 802.11a/b/n/g/ac, IEEE 802.3az, IEEE 802.3af, IEEE 802.3i/u/ab, IEEE 802.3x |
| Network Management | |
| System Configuration | Nuclias Cloud |
| Wireless | |
| Wi-Fi Frequencies | 2.4 GHz, 5 GHz |
| Antenna Type | Built-in 2 x MU-MIMO antenna |
| Encryption Security | WPA, WPA2, WPA3 |
| Interfaces | |
| LAN Ports | 1 x 10/100/1000 Mbps Ethernet PoE port |
| Power | |
| Power Consumption | PoE: 13.5 W |
| Input Connection | IEEE 802.3af Power over Ethernet |
| Mechanical | |

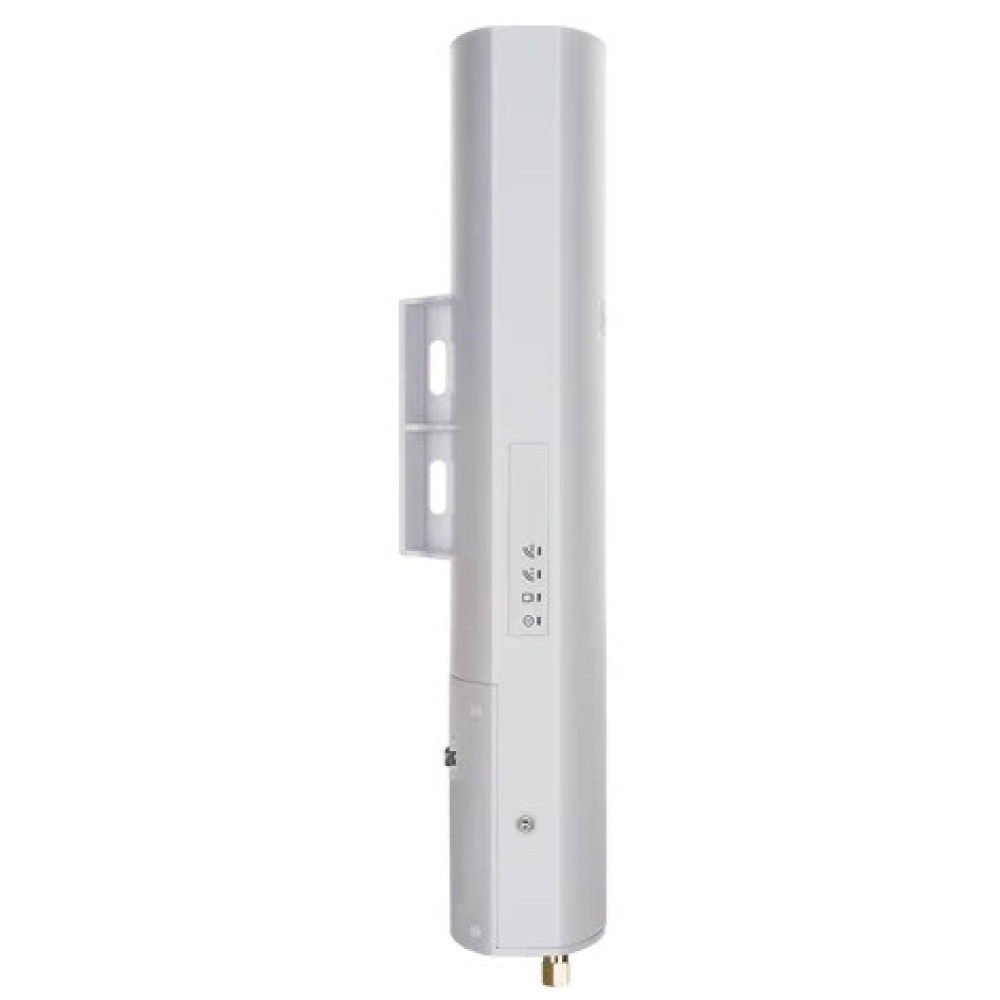

| Mounting | Pole, Wall |
| Weight | 0.822 kg (1.81 lbs.) without bracket |
| Dimensions | 291.9 x 115 x 65.5 mm (11.49 x 4.53 x 2.57 in) |
| Ratings | |
| Operating Temperature | -40 - 50° C (-40° F - 122° F) |
| Storage Temperature | -40 - 65° C (-40° F - 149° F) |
| Humidity | 10 - 90% non-condensing |
| Certifications | CE Class B, FCC Class B, UL, IC Class B |
| MTBF | 1,142,136 hours |
| Download Name | File Size |
| D-Link Nuclias Cloud DBA Series User Manual | 6.97MB |
| D-Link DBA-3620P & DBA-3621P Datasheet | 2.49MB |
| D-Link DBA-3620P Quick Installation Guide | 1.44MB |
