Manufacturer: D-Link

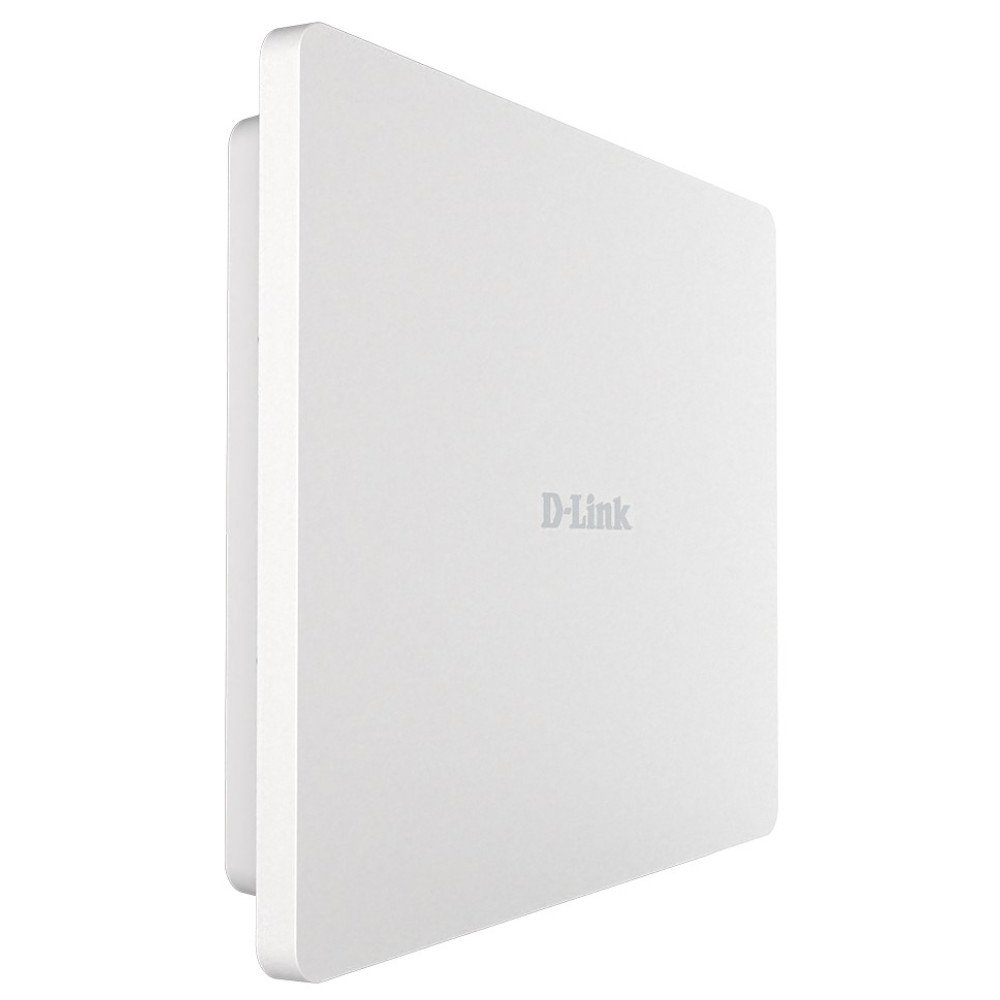

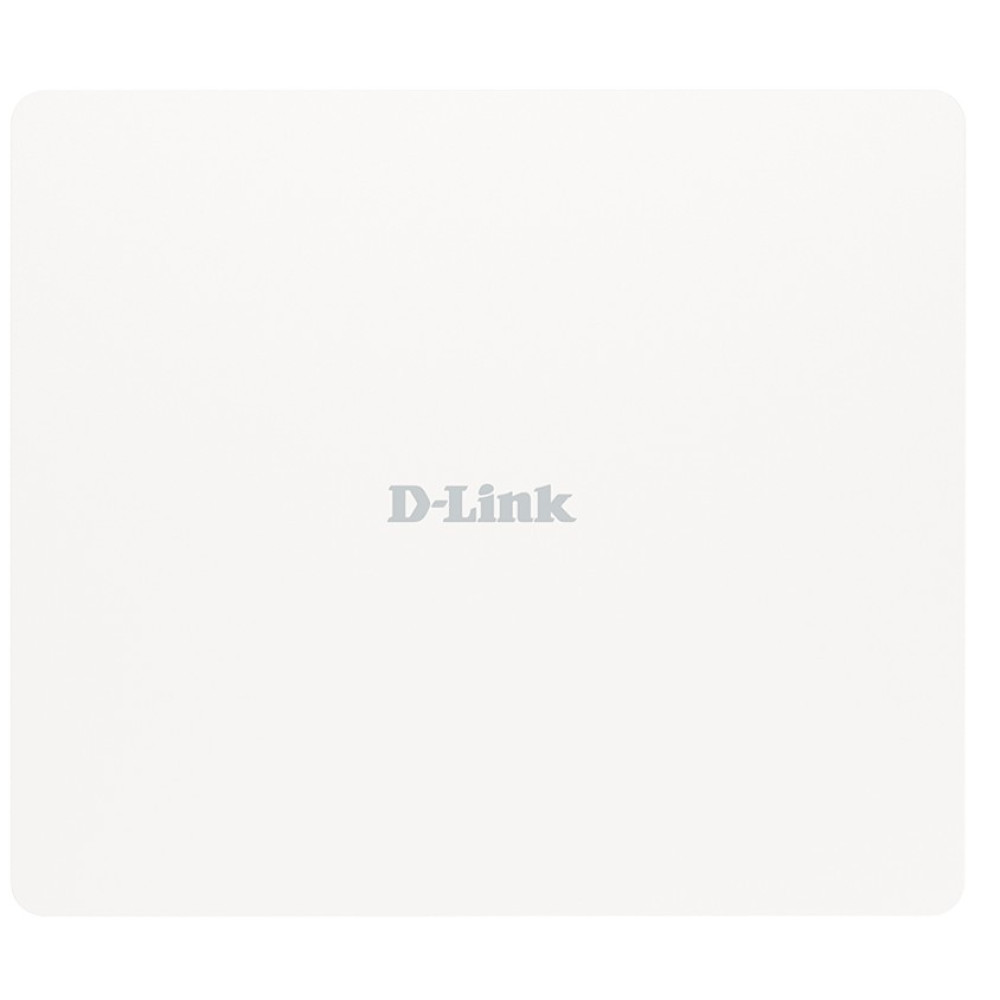

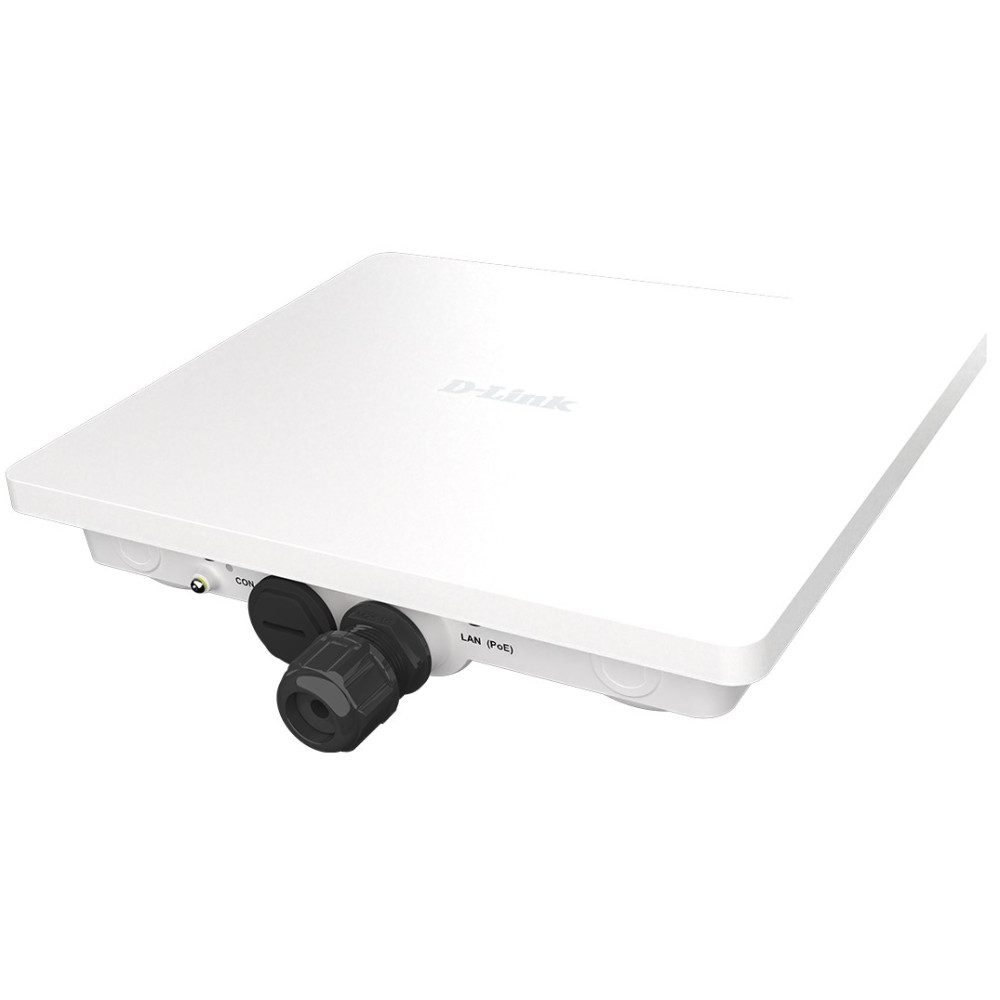

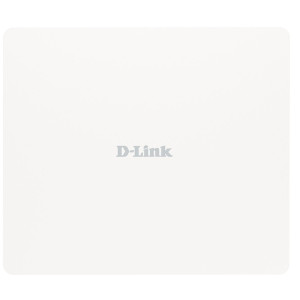

The DAP-X3060OU provides unbeatable speeds, greatly increased capacity, and interference-free coverage for businesses. It works with the Nuclias Connect software-based management platform. It delivers combined speeds of up to 2402 Mbps on the 5GHz band and 574 Mbps on the 2.4GHz band, providing fast, reliable connectivity in the harshest of environments. Its rugged IP68-certified weatherproof housing provides protection against dust, rain, heat, snow and rust, even in extreme summer or freezing winter temperatures of -30 to 60°C. The breathable hole design repels liquid water while allowing heat and humidity to dissipate. With the AP's optimized antennas and integrated 802.3at PoE, you can deploy it exactly where your network needs wireless coverage and where power outlets are not available.
The DAP-X3060 is empowered with next generation Wi-Fi 6. Enhanced MU-MIMO with even more uplink and downlink streams serves more devices simultaneously.
The DAP-X3060’s Load Balancing feature spreads the work load between two or more Access Points to get optimal resource utilization, throughput and response time. Band Steering auto-connects devices such as smart phones and tablets to the higher-capacity 5 GHz band while allowing devices 2.4 GHz-ready to remain. The result is a steady, consistent connection for each user – the perfect balancing act. It supports up to eight VLANs per band, allowing multiple SSIDs to segment users and includes a wireless client isolation mechanism, which limits direct client-to-client communication. Moreover, Network Access Protection (NAP), allows multiple levels of network access to be defined based on a client’s needs. The DAP-X3060OU also supports a built-in RADIUS server, RADIUS server (backend), MAC address filtering, wireless LAN segmentation, SSID broadcast disable, rogue AP detection, and wireless broadcast scheduling to protect the network.

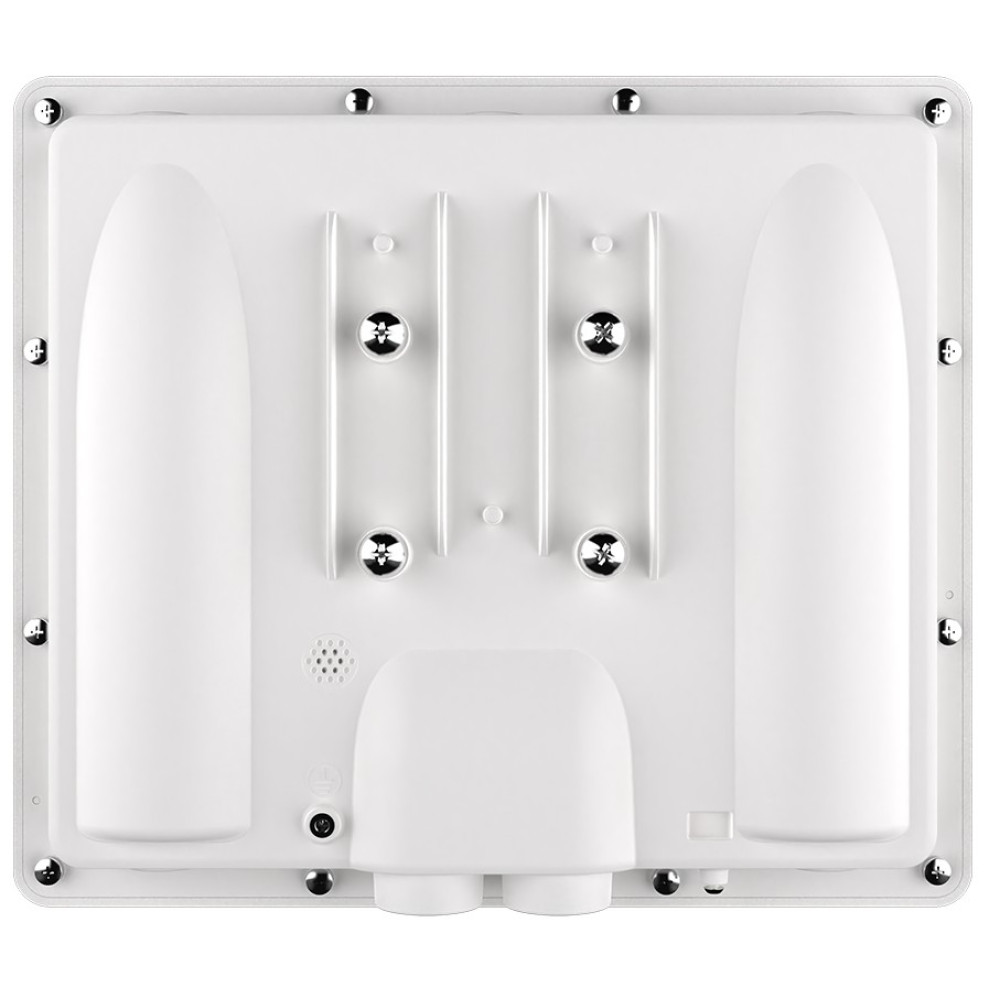

Installation is simplified with IEEE 802.3at PoE+, providing more power for high-performance devices and reducing the need for extra cables. Mount on a wall or pole with the included mounting kits.
Nuclias Connect is a free and versatile network management solution and is designed for businesses seeking centralized control and efficiency. It can be used either as an on-premise software management platform, with an optional hardware controller, or as a cloud solution hosted on a private cloud service for remote access.
 |
Easier for Network AdministratorsConveniently monitor and configure wireless networks centrally using Nuclias Connect. Configurations can be done remotely, with all devices in the network automatically receiving their configurations at once for faster deployments. Features easy setups, remote access, and an intuitive dashboard.
Supports Multi-Site ManagementNetwork administrators can set different configurations and authority levels for head and branch offices. Network devices can be pre-configured before being dispatched to regional offices, allowing fool-proof deployments, replacements or scaling.
Scale Your NetworkNuclias Connect gives you the financial and technical flexibility to expand from a small network to up to 1,500 Access Points while retaining a robust and centralized management system.
See Your Business EverywhereEasily access Nuclias Connect via the tablet app or through a browser, from anywhere in the world, and keep on top of any requirements like creating guest networks, adding Wi-Fi to additional locations, updating devices and keeping your network secure. |
| Technology | |
| Category | WiFi Access Point |
| Standards | IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3u/ab, IEEE 802.3az, IEEE 802.3at |
| Wireless | |
| Wi-Fi Frequencies | 2.4 - 2.483 GHz, 5.15 - 5.35 GHz, 5.47 - 5.85 GHz |
| Antenna Type | 4 internal antennas |
| Encryption Security | WPA/WPA2/WPA3 Personal/Enterprise, WEP 64/128-bit, SSID broadcast disable, MAC address access control, internal RADIUS server |
| Interfaces | |

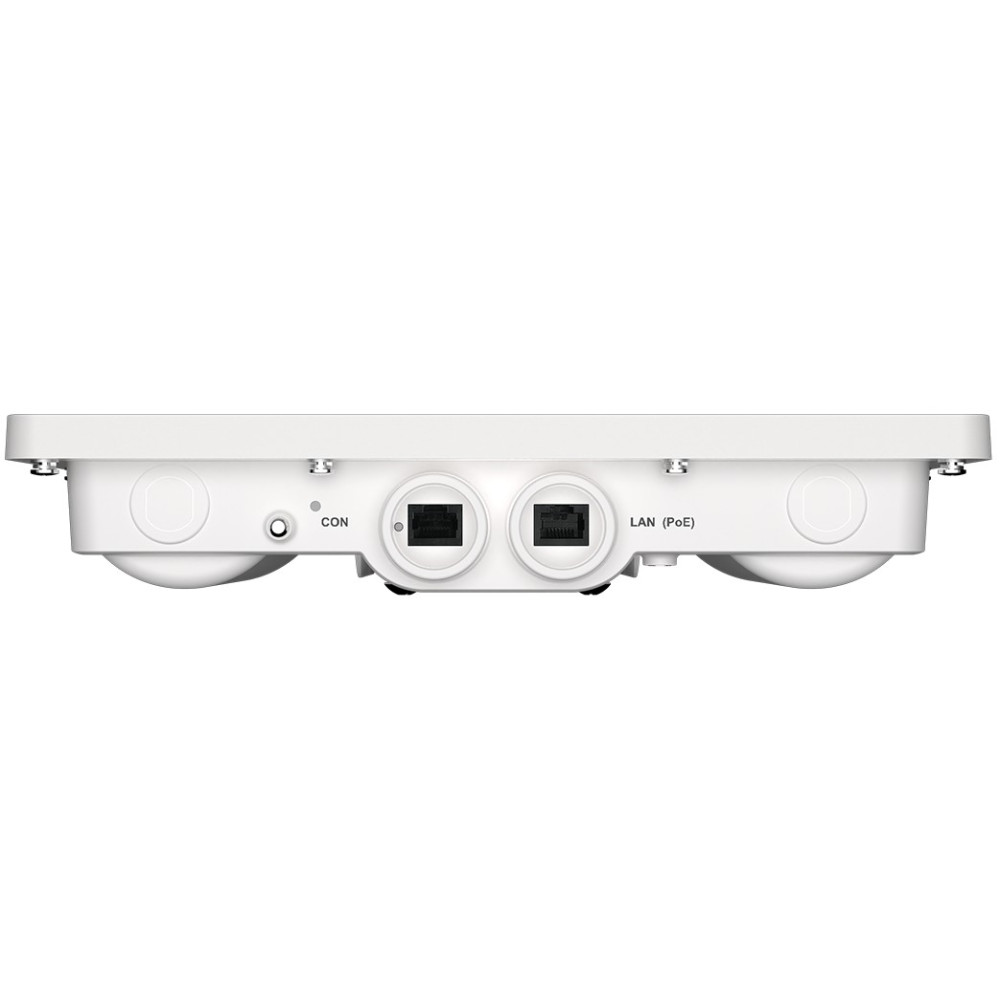

| LAN Ports | 1 x 10/100/1000/2500 Mbps Ethernet PoE Port |

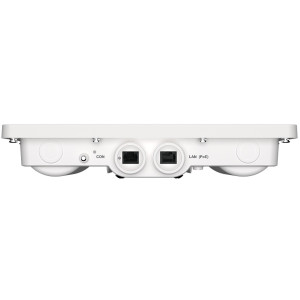

| Console Port | RJ45 |
| Power | |
| Power Consumption | 16.7 W |
| Input Connection | 54 V DC sold separately |
| Mechanical | |
| Mounting | Wall, pole |
| LED Indicators | Power/Status |
| Weight | 1159 g (2.56 lbs.) |
| Dimensions | 277 x 240 x 50 mm (10.91 x 9.45 x 1.97 in) |
| Ratings | |
| Operating Temperature | -30 to 60 °C (-22 to 140 °F) |
| Storage Temperature | -30 to 65 °C (-22 to 149 °F) |
| Humidity | 10 - 90% non-condensing |
| Certifications | CE, FCC, IC, RCM, LVD, EN 60601-1-2 |
| MTBF | > 30,000 hours |
| Download Name | File Size |
| D-Link DAP-X3060OU Datasheet | 784.82KB |
| D-Link DAP-X3060OU Quick Installation Guide | 686.88KB |
| D-Link DAP-X3060OU User Manual | 5.59MB |
