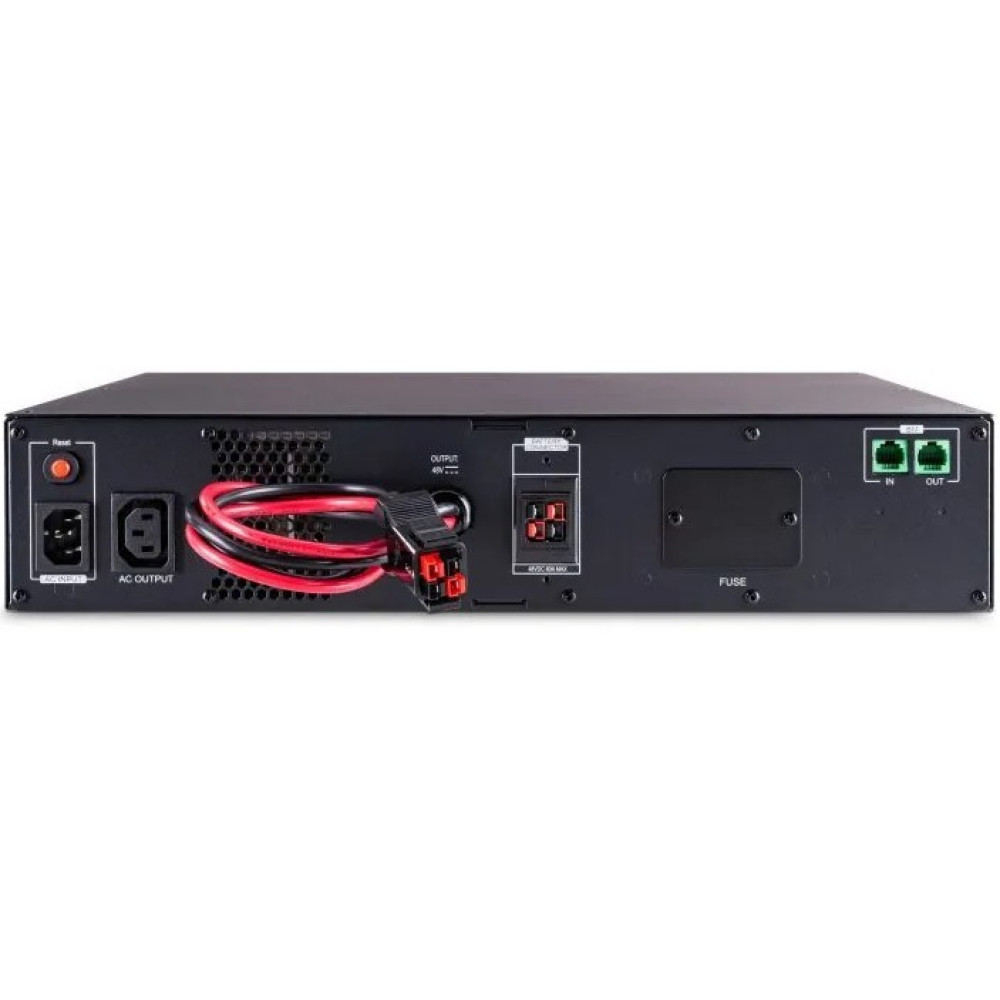

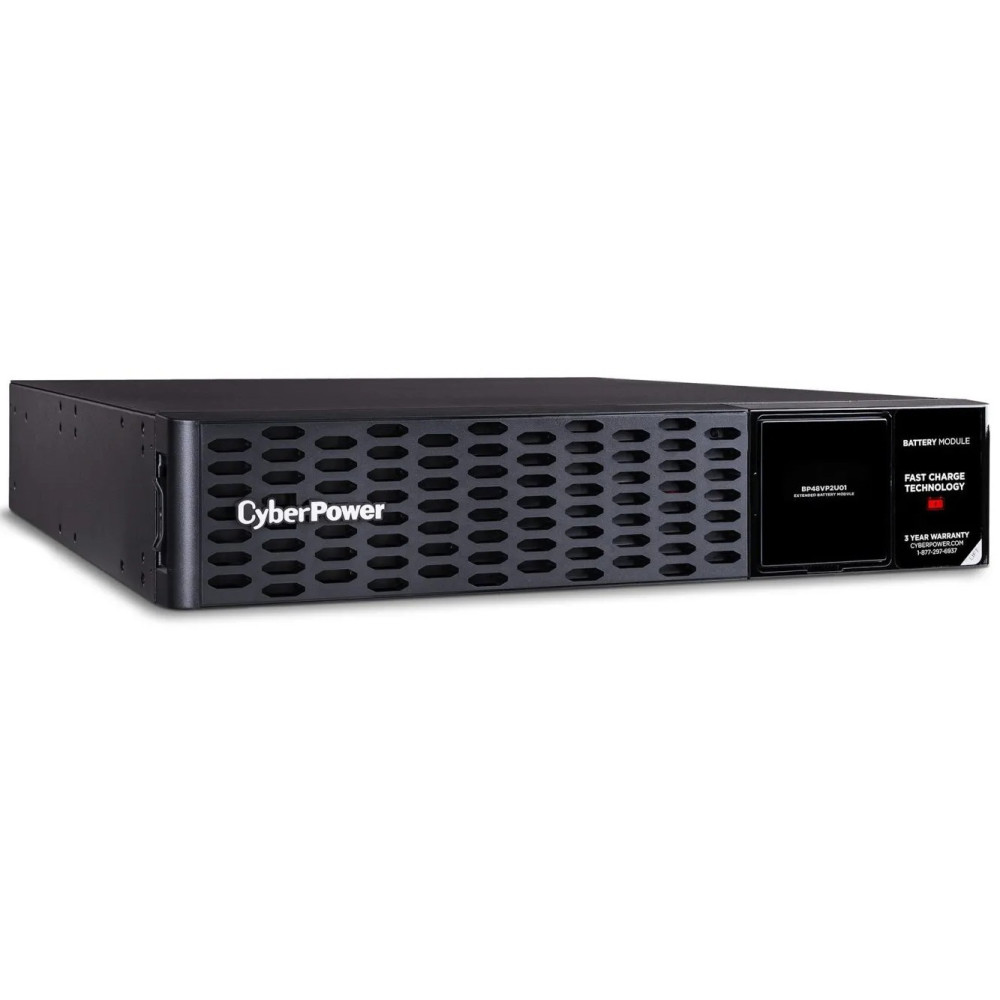

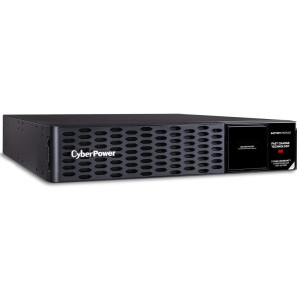

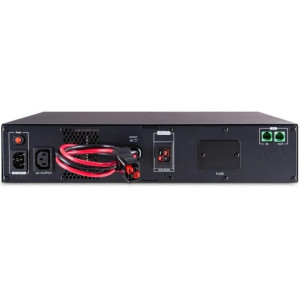

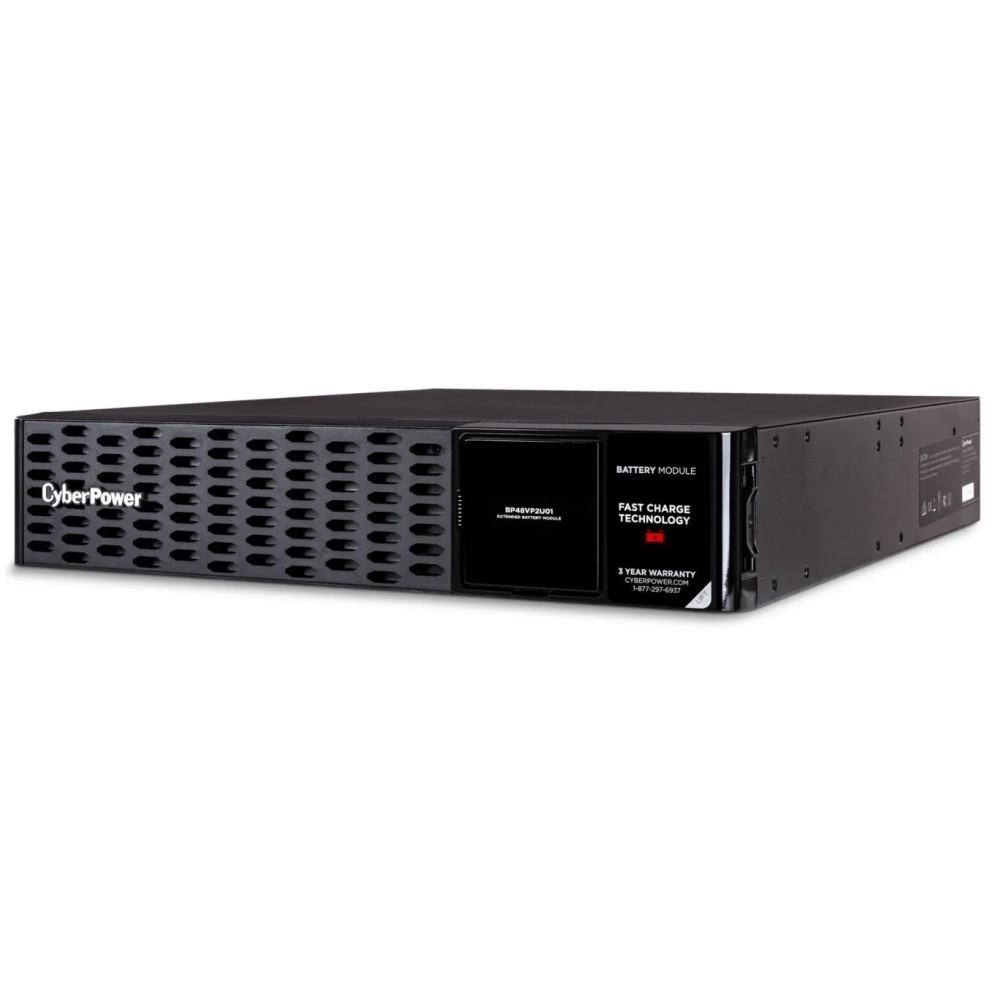

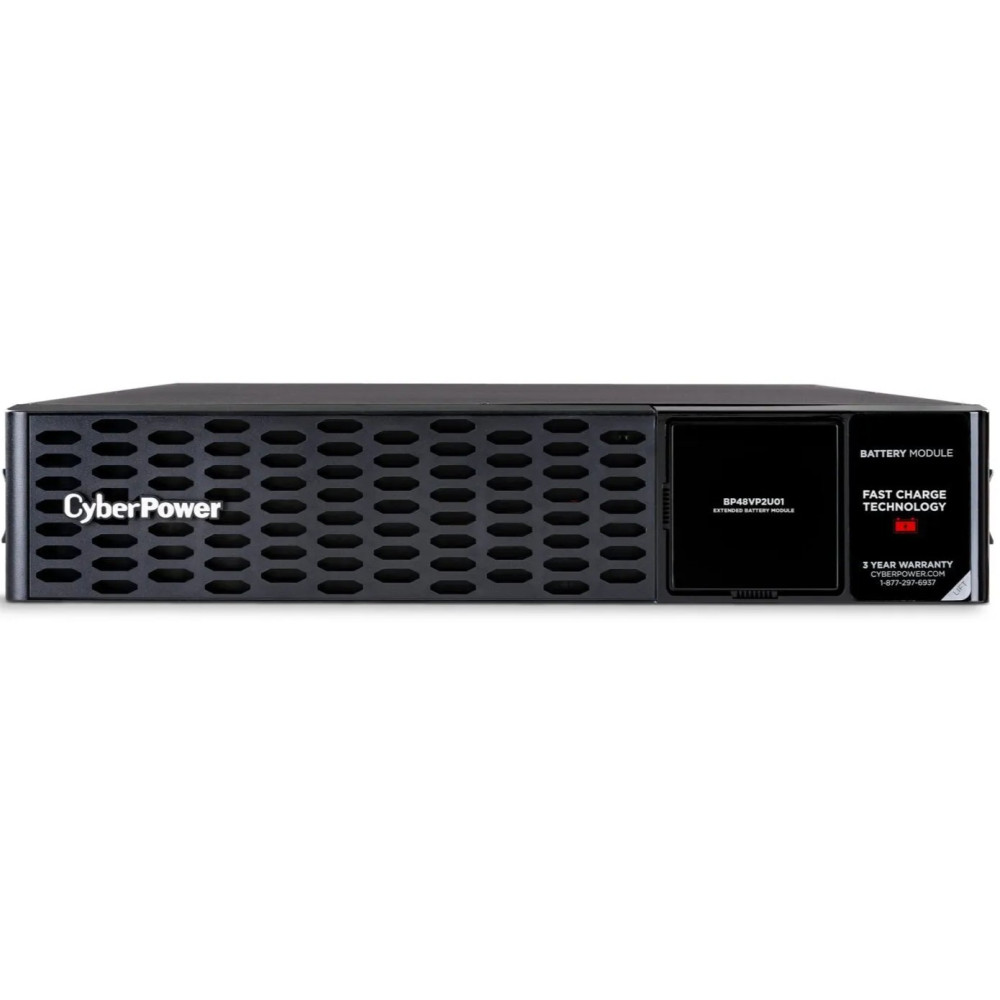

The CyberPower BP48VP2U01 is a rack/tower convertible Extended Battery Module (EBM) that extends battery runtimes during power outages and is designed for the following UPS systems: PR750RTXL2UC and PR1000RTXL2UC. The DC plug-and-play power connectors allow for daisy-chaining additional EBMs to the UPS system. The EBM also has a built-in battery charger, providing Fast Charge Technology to quickly restore the backup power supply to full capacity.
This EBM takes 2U of rack space and can be installed in either a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless battery panel access makes battery replacement fast and simple.
The BP48VP2U01 comes with a 3-year lifetime limited warranty.
CyberPower manufactures professional grade UPSs to satisfy a wide range of battery backup requirements. To find out which CyberPower UPS model is best for your project, contact Westward Sales today!
Technology | |
Category | Extended Battery Module |
Battery | |
Battery Type | Sealed Lead-Acid Battery |
Recharge Time | 6 Hours |
Power | |
Output Voltage | 48 V |
Mechanical | |
Enclosure | 2U Rack or tower |
Color | Black |
Material | Metal |
Weight | 55.8 lbs. |
Dimensions | 17.1 x 3.4 x 16.2 in |
Ratings | |
Operating Temperature | 32 - 104 °F (0 - 40 °C) |
Humidity | 0% to 95% non-condensing |
RoHS Compliant | Yes |
Certifications | CE, RCM, UL1778, cUL, FCC Class B, VCCI |
Warranty | 3-year |
Download Name | File Size |
CyberPower BP48VP2U01 Datasheet | 320.94KB |
CyberPower BP48VP2U01/BP48VP2U02 User Manual | 1.18MB |
