Black Box EME1X8 AlertWerks 8-Port Sensor Expansion Hub, DIN-Rail or Rackmount

Black Box EME1X8 AlertWerks Sensor Expansion Hub, 8-Port, DIN-Rail or Rackmount Options

The EME1A1-005 Sensor Expansion Hub is an expansion module that provides an additional (8) RJ-45 intelligent sensor ports and connects to the RJ-45 expansion port located on the front panel of the AlertWerks wired gateway. The expansion hub connects to the gateway using a standard CAT5e cable. It is available in a DIN-rail or rackmount option.

Expansion Hubs can be daisy chained using the E-Out/E-In ports found on the front panel of the expansion hub. Extend the expansion boards from the AlertWerks base unit or from each other up to 1000 feet (300 meters).

Key Features

• Provides an additional 8 sensor ports
• Connects to AlertWerks Wired Gateways
• Expansion hubs can be daisy-chained
• Extend the expansion hub from the AlertWerks Gateway or from each other up to 1000 feet
• Available in a DIN Rail or Rackmount option

Configurations

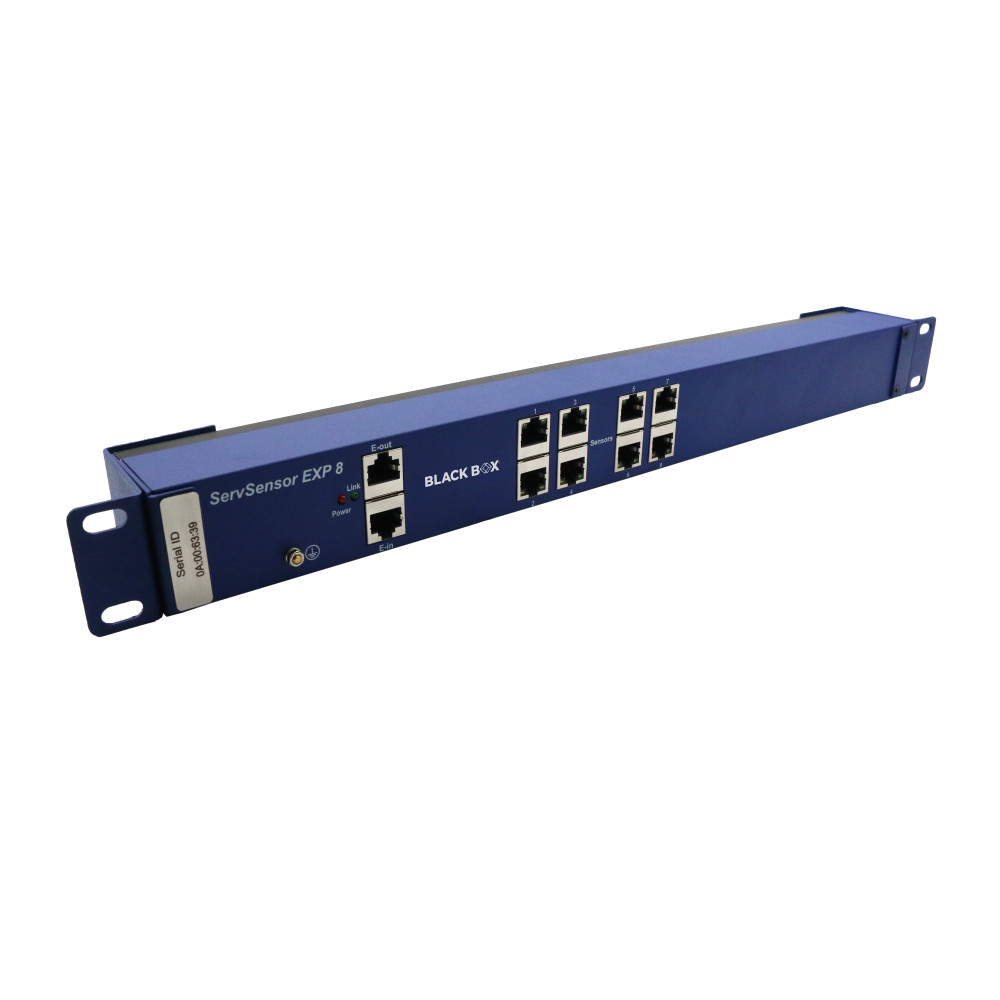

EME1X8RAK, AlertWerks Sensor Expansion Hub, Rackmount

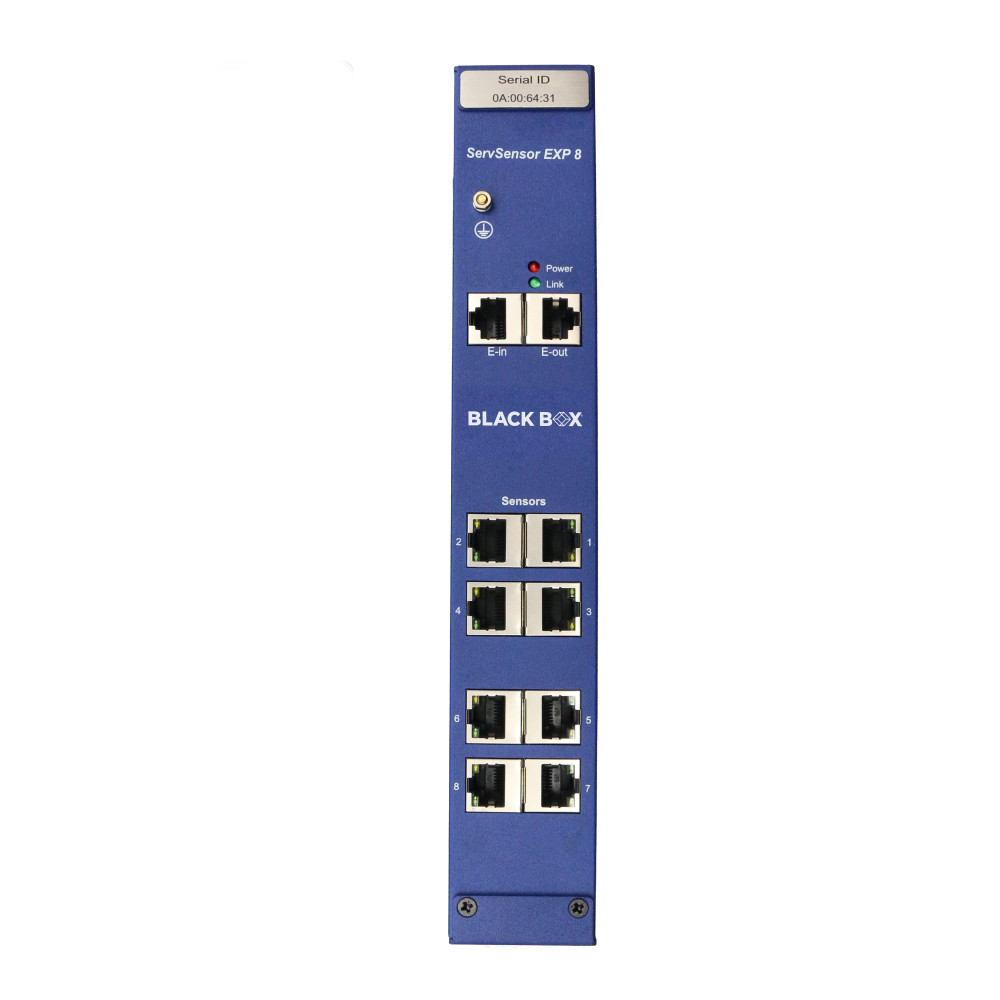

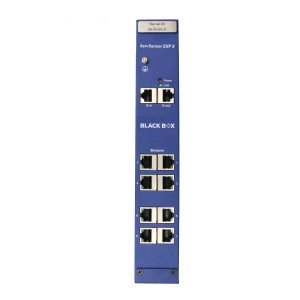

EME1X8-R2, AlertWerks Sensor Expansion Hub, DIN-Rail
