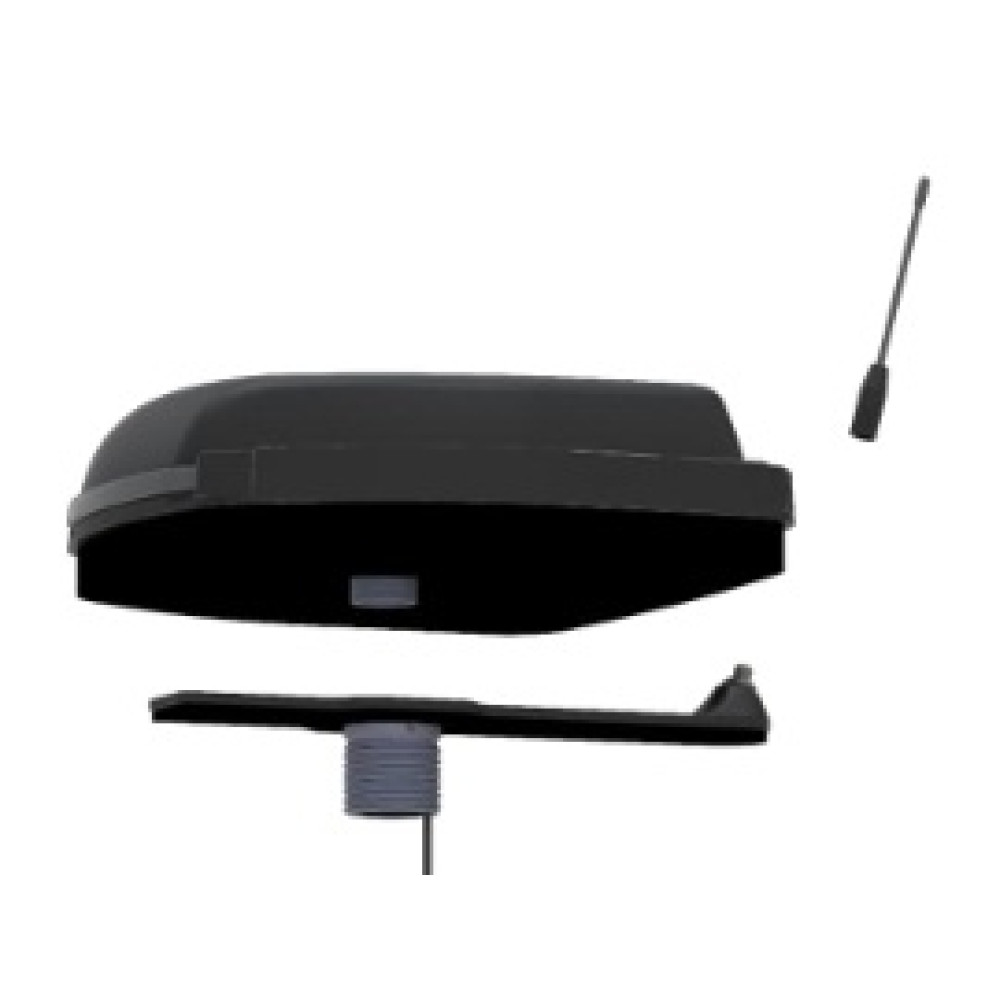

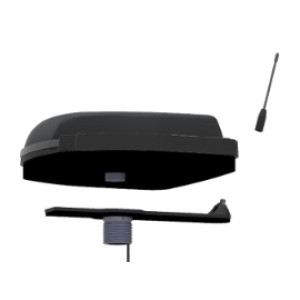

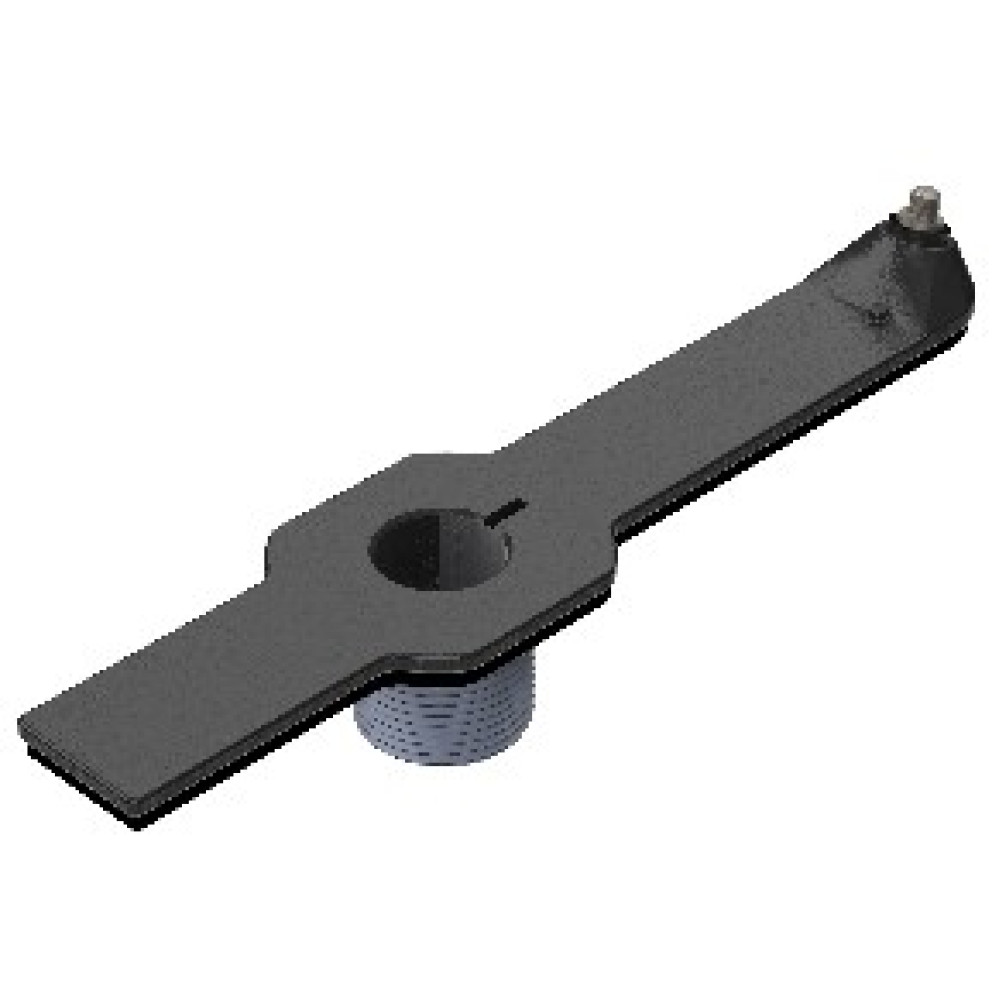

The Airgain AP-WP-B Whip Base Adapter is a convenient accessory for adding Land Mobile Radio connectivity to MULTIMAX 5G, RECON13 and AC-Fleet. It seals over a standard bolt so that both can be mounted through a single hole, saving on installation time and cost while also protecting the vehicle’s resale value. The integrated stud mount supports whip antennas with a range of VHF, UHF and 700-900 MHz frequencies. The EZConnect cable provides compatibility with virtually any radio equipment.
| Technology | |
| Category | Wireless Accessory |
| Wireless | |
| Frequency Range | VHF (30–300 MHz), UHF (300–600 MHz), 700–960 MHz supported |
| Antenna Accessories | Mounting Hardware |
| Power | 100 W maximum radio power |
| Mechanical | |
| Mounting | M6 x 0.75mm stud mount |
| Shock / Vibration | MIL-STD 810G Compliant |
| Color | Black |
| Weight | 0.6 lbs. (0.5 kg) |
| Dimensions | 8.5” x 2.0” x 1.0” (215 x 50 x 26mm) |
| Ratings | |
| Operating Temperature | - 40ºC to 85ºC (- 40ºF to 185ºF) |
| Humidity | 95% RH at 60°C (non-condensing) |
| RoHS Compliant | Yes |
| Certifications | IP67/IP69K rated |
| Download Name | File Size |
| Airgain AP-WP-B Datasheet | 277.23KB |
| Airgain AP-WP-B Installation Guide | 365.58KB |
