SENA Parani-ESD1000SK Starter Kit For Parani-ESD1000 Modules

Parani Starter Kit For Parani-ESD1000
Model: PARANI-ESD1000SK
Availability: Discontinued

*** DISCONTINUED ***  This Bluetooth module is discontinued.

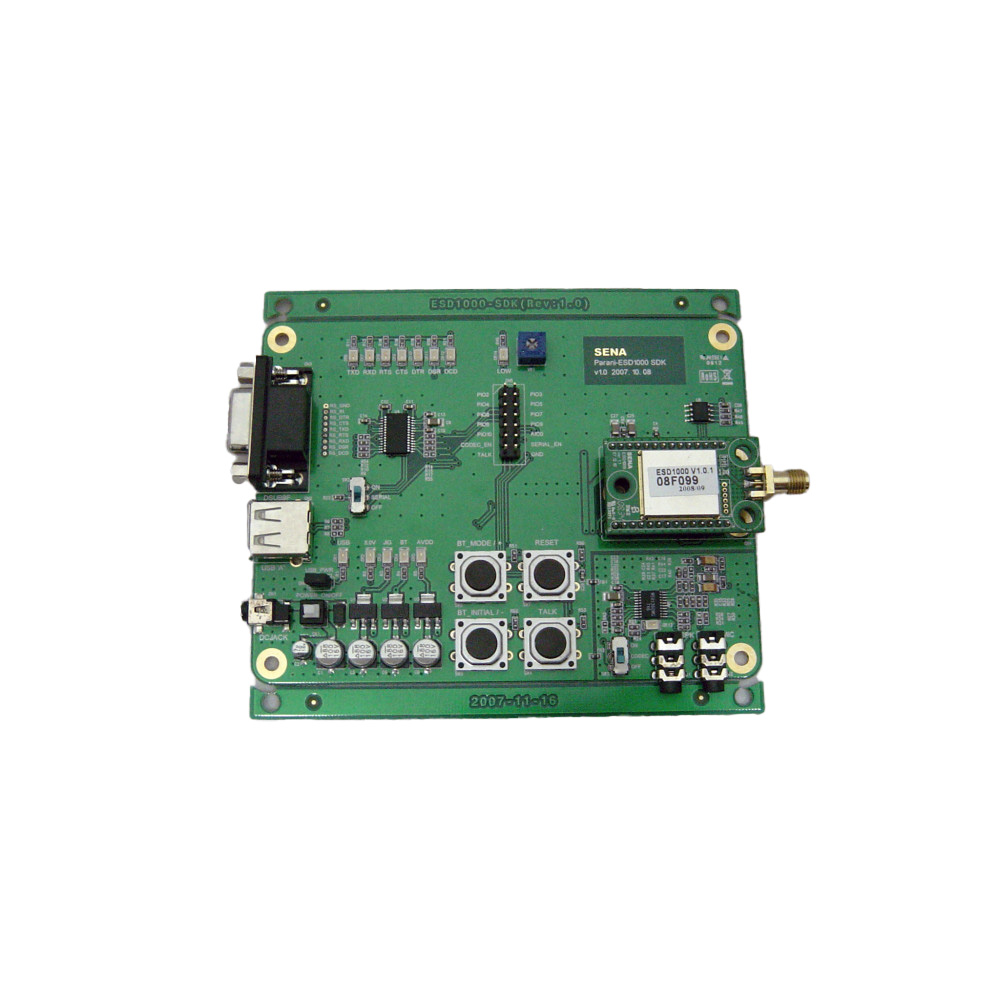

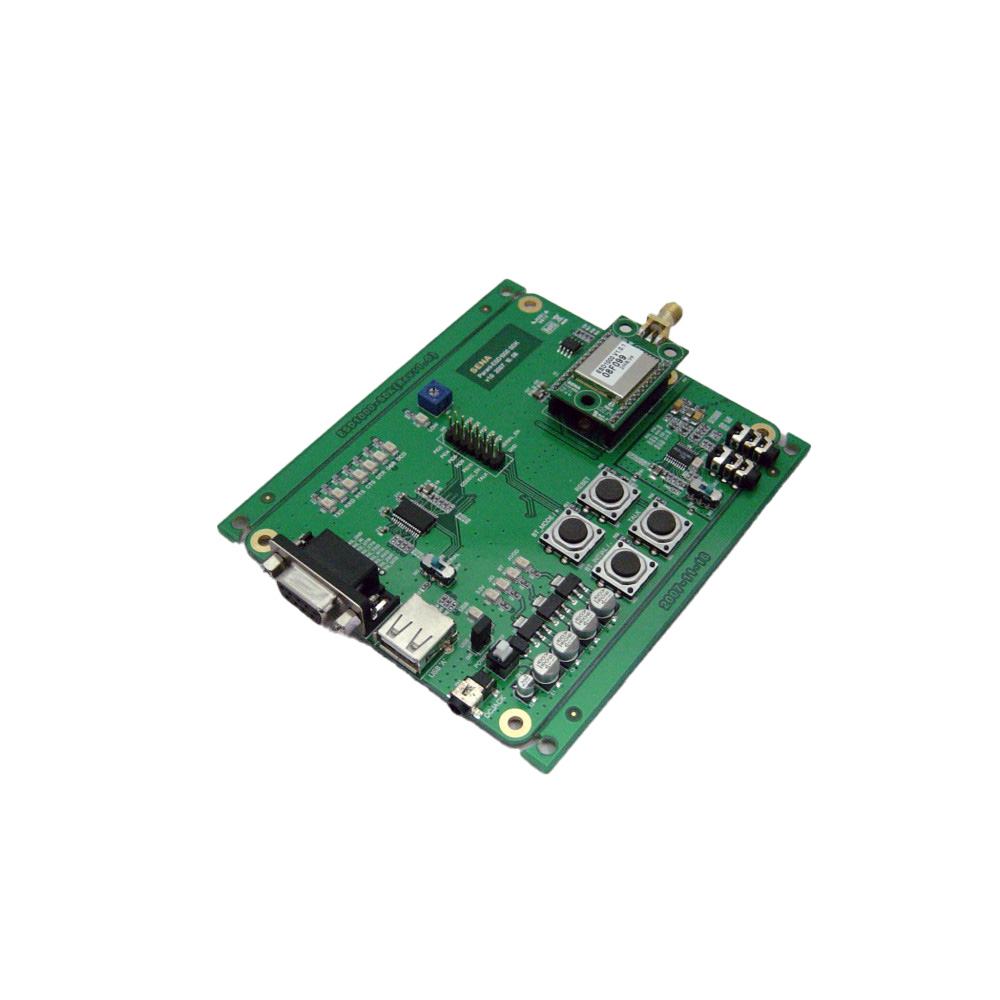

SENA PARANI-ESD1000SK Starter Kit for Parani-ESD1000 Modules

The Parani-ESD1000SK is Class1 type Bluetooth interface module for users wish to embed Bluetooth v2.0+EDR, Class 1 functionality into their products. The transmission distance is 100 meters using the default antenna.  Or, transmit up to 1000 meters using an optional patch antennas. The Parani-ESD1000SK also supports 4 simultaneous connections.

Key Features

  • Bluetooth Specification v2.0 + EDR compatible
  • Maximum Transmit Power: +18 dBm
  • Maximum EDR Transmit Power:  +6 dBm
  • Receiving Sensitivity: -88dBm(0.1%BER)
  • Supports Bluetooth Serial Port Profiles
  • External interface for UARTs
  • Supports firmware upgrade via windows-based software (ParaniUpdater)
  • Working distance 100 meters or up to 1000 meters using patch antenna
  • Easy to use Windows configuration tool set included
  • No external device drivers required
