Antaira SFP-C 10/100/1000BASE-T Ethernet (copper RJ45) to SFP

Antaira SFP-C 10/100/1000BASE-T Copper Ethernet SFP, RJ45
Model: SFP-C
Availability: IN STOCK
FREE SHIPPING !
$37.00

Choose Options


Port Options:



SFP Compatibilty:

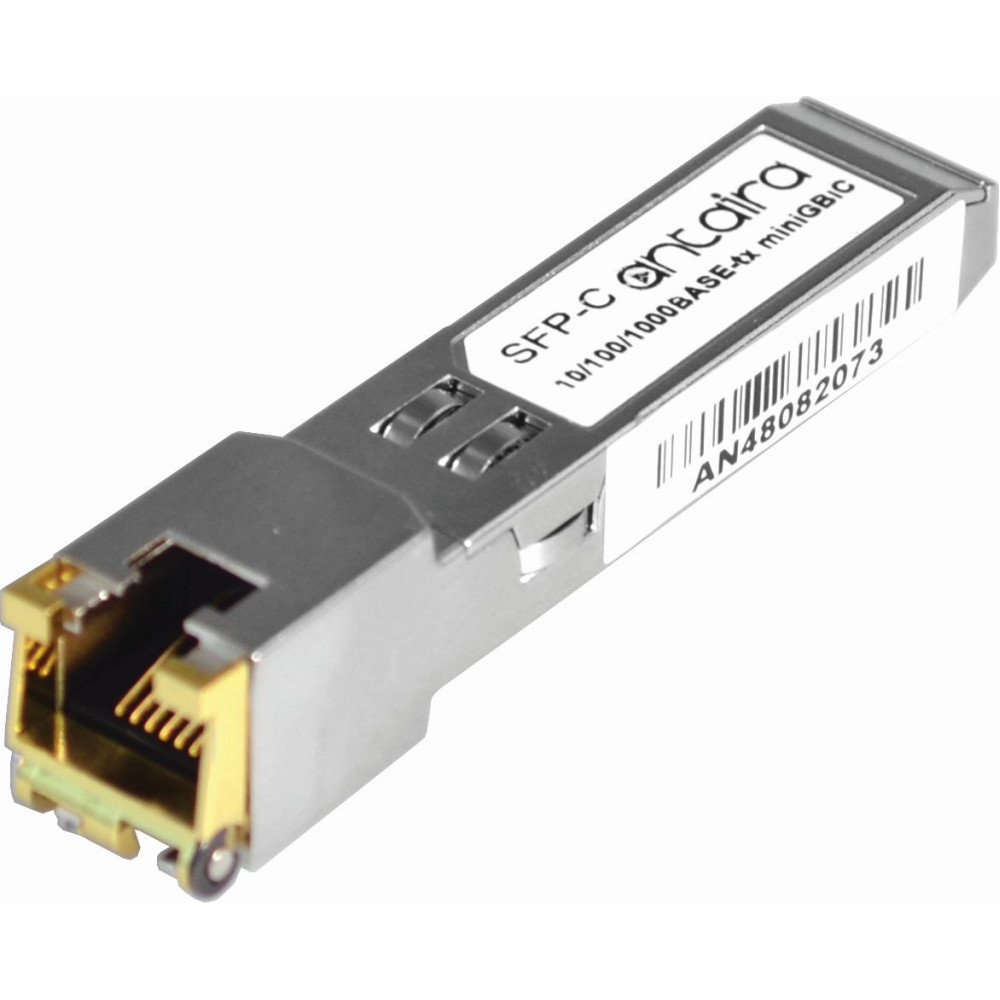

Antaira SFP-C Gigabit SFP Module for RJ45 / Copper Connections

Achieving the full capacity of a fiber network’s utility requires acute attention to detail. When you need to make minor adjustments or enable quick access for Ethernet devices, you need an accessory that does the job conveniently at minimal cost. Those are the design philosophies behind Antaira’s SFP-C copper Ethernet transceiver.

This transceiver handles robust data transmission. It supports 1000 Mbps connection up to 100 meters. The module can support full duplex data links with 5-level Pulse Amplitude Modulation (PAM). Each cable pair can handle 250 Mbps signals, and the module provides standard serial ID information. This is built into a hot pluggable package that is protected by an EMI (electromagnetic interference) reducing shield. As expected, Antaira supports it with their industry-leading 5-year warranty.

KEY FEATURES

  • Gigabit Ethernet to SFP
  • Compact RJ-45 connector assembly
  • 1.25 Gb/s bidirectional data
  • Low power dissipation at 1.05 W
  • 1000 Mbps compliant in host systems
  • Hot pluggable
  • Interference reducing metallic enclosure
  • Standard operating temperature of 0° to 70°C
  • 5-year warranty

CONFIGURATIONS

SFP-C,      10/100/1000BASE-T RJ45 Ethernet (copper) to SFP
SFP-C-H, 10/100/1000BASE-T RJ45 Ethernet (copper) to SFP, HP Compatible
SFP-C1,     1000BASE-T RJ45 Ethernet (copper) to SFP
SFP-C1-H, 1000BASE-T RJ45 Ethernet (copper) to SFP, HP Compatible  (call for availability)

SFP transceivers are just one of many small tools you won’t appreciate until you need. With a quick phone call, you can be in touch with one of our experts. We’ll help you anticipate the little things that often need attention to minimize downtime and performance issues. We want your network to perform at its best, and with very little help, it will.

SFP Characteristics
Class1G SFP (Copper)
CompatibilityCisco, HP, Dell, Juniper
Data Rate1.25Gbps
InterfaceRJ-45
Transmit Distance100 m
Operating Voltage3.3V
SFP Dimensions5.5 x 87.1 x 5.38 mm
Ratings
Operating Temperature0 to 70°C
Storage Temperature-40 to 85°C
RoHS CompliantYes
Warranty5 Years
Download NameFile Size
SFP-C Datasheet108.04KB
SFP-C1 Datasheet267.76KB
